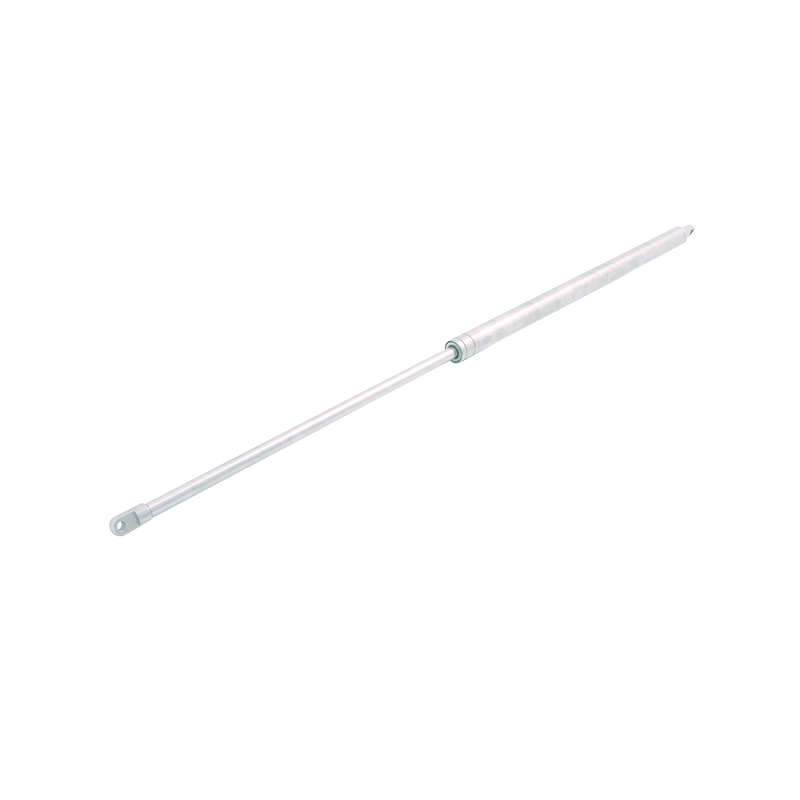

Gas spring, stainless steel, M8 thread, stroke length = 200 mm, force = 900 N
MT101972
Gas spring manufactured in stainless steel with M8 thread for mounting the end fittings. Stroke length is 200 mm and the force is 900 N. The mounting length is 502 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Material type
Stainless steel
Mounting, cylinder side
M8
Mounting, piston side
M8
Oil chamber
No
Progression in %
30
Valve
Yes
Cylinder diameter in mm
23
Force in N
900
Mounting length in mm
502
Stroke
200
Piston diameter
10
Long description
Gas spring manufactured in stainless steel with M8 thread for mounting the end fittings. Stroke length is 200 mm and the force is 900 N. The mounting length is 502 mm. We can deliver a wide range of products on request. Please contact us for more information.
