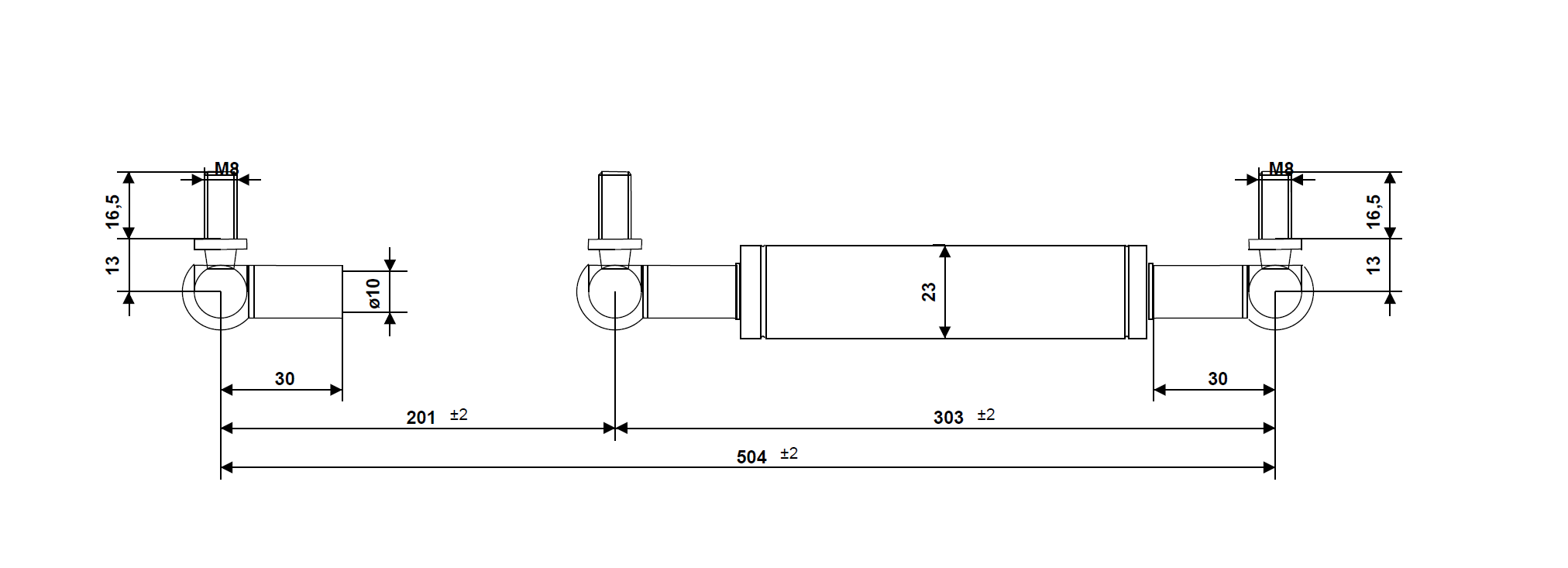

Gas spring, stainless steel, M8 thread, stroke length = 201 mm, Force = 850 N
MT111533
Gas spring manufactured in stainless steel with M8 thread for mounting the end fittings. Stroke length is 201 mm and the force is 850 N. The mounting length is 504 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Compression
Fitting, cylinder
Angle joint
Fitting, piston
Angle joint
Material type
Stainless steel
Mounting, cylinder side
M8
Mounting, piston side
M8
Oil chamber
No
Progression
47
Valve
Yes
Cylinder diameter in mm
23
Force in N
850
Mounting length in mm
504
Stroke length
201
Piston diameter
10
Long description
Gas spring manufactured in stainless steel with M8 thread for mounting the end fittings. Stroke length is 201 mm and the force is 850 N. The mounting length is 504 mm. We can deliver a wide range of products on request. Please contact us for more information.
