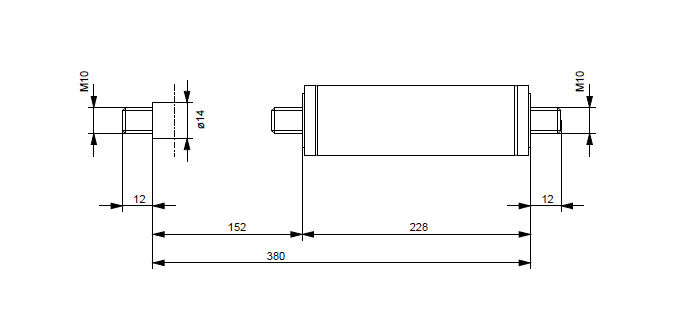

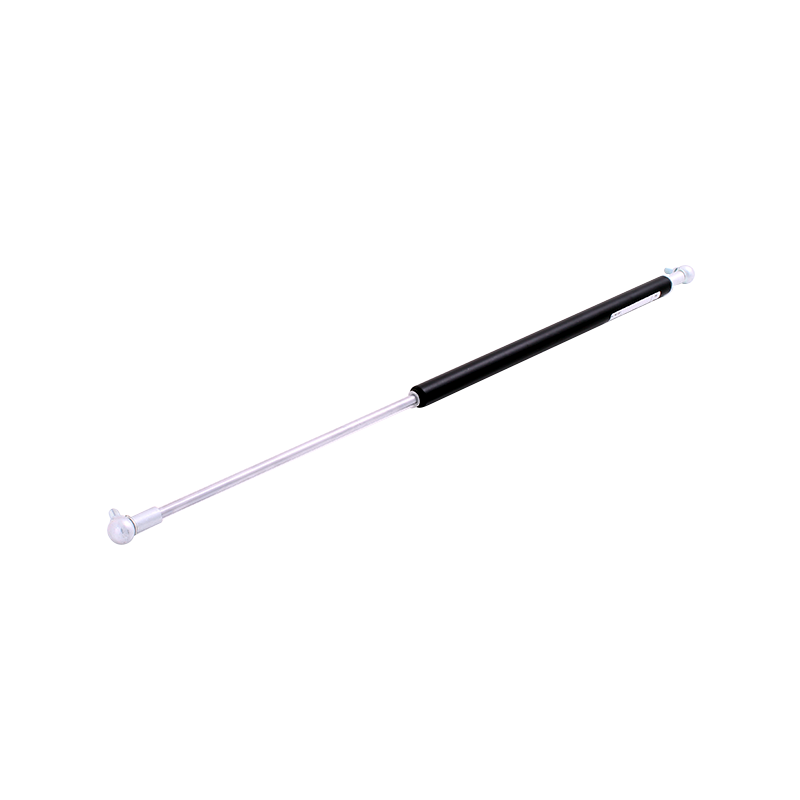

Gas spring, steel, M10 thread, stroke length = 152 mm, force = 300 N
MT104480
Gas spring manufactured in steel with M10 thread for mounting the end fittings. Stroke length is 152 mm and the force is 300 N. The mounting length is 380 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Fitting, piston
Material type
Steel
Mounting, cylinder side
M10
Mounting, piston side
M10
Oil chamber
No
Surface finish
Painted
Progression
51,3
Valve
Yes
Cylinder diameter in mm
28
Force in N
300
Mounting length in mm
380
Stroke length
152
Piston diameter
14
Long description
Gas spring manufactured in steel with M10 thread for mounting the end fittings. Stroke length is 152 mm and the force is 300 N. The mounting length is 380 mm. We can deliver a wide range of products on request. Please contact us for more information.
