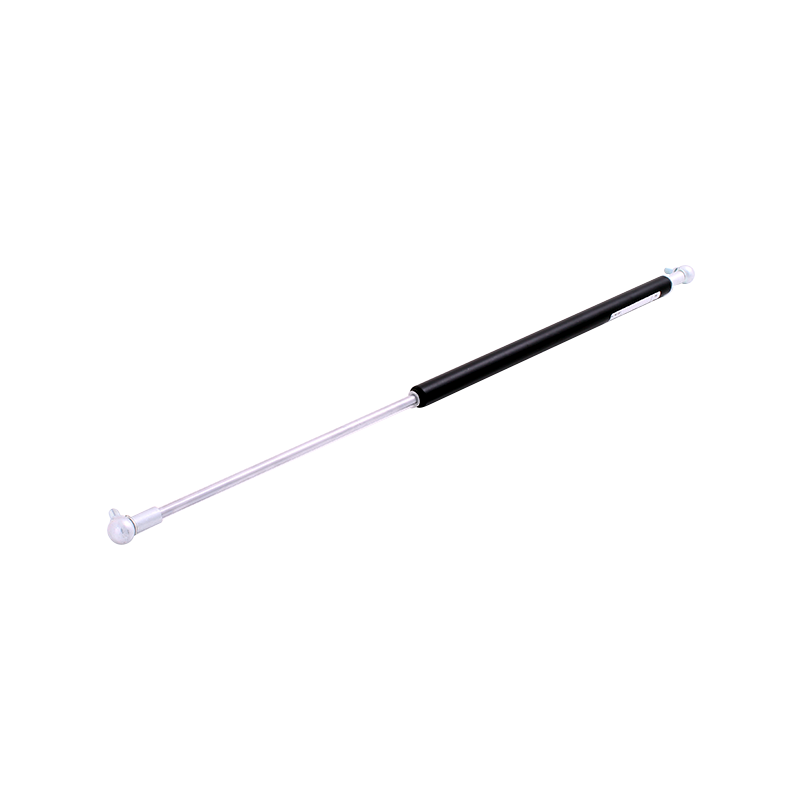

Gas spring, steel, M10 thread, stroke length = 250 mm, force = 1300 N
MT113086
Gas spring manufactured in steel with M10 thread for mounting the end fittings. Stroke length is 250 mm and the force is 1300 N. The mounting length is 602 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Colour
Black
Material type
Steel
Mounting, cylinder side
M10
Mounting, piston side
M10
Oil chamber
No
Surface finish
Painted
Progression in %
50
Valve
No
Cylinder diameter in mm
28
Force in N
1300
Mounting length in mm
602
Stroke
250
Piston diameter
14
Long description
Gas spring manufactured in steel with M10 thread for mounting the end fittings. Stroke length is 250 mm and the force is 1300 N. The mounting length is 602 mm. We can deliver a wide range of products on request. Please contact us for more information.
