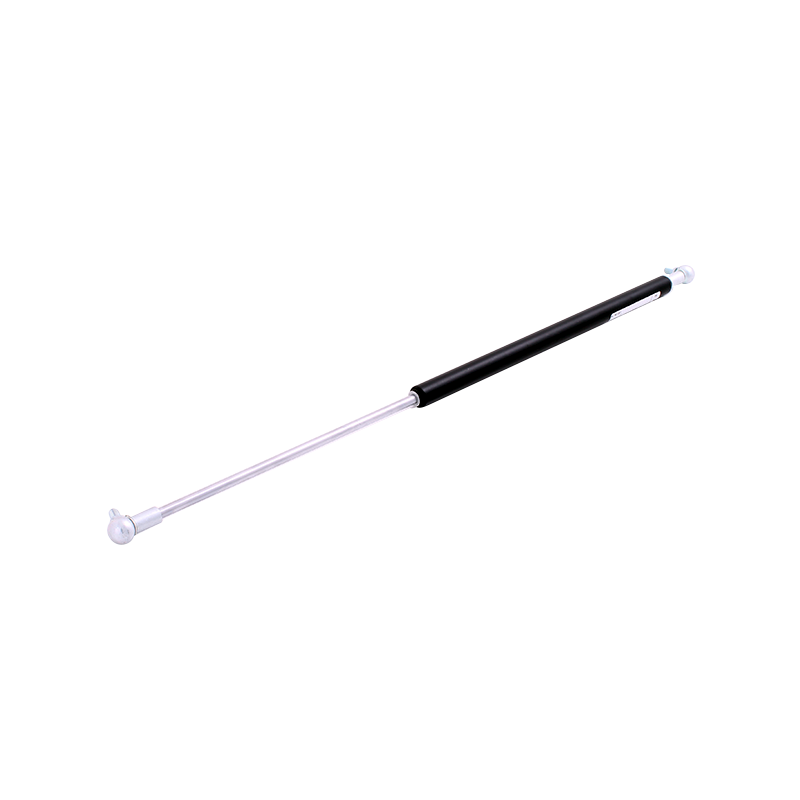

Gas spring, steel, M10 thread, stroke length = 400 mm, force = 1700 N
MT104472

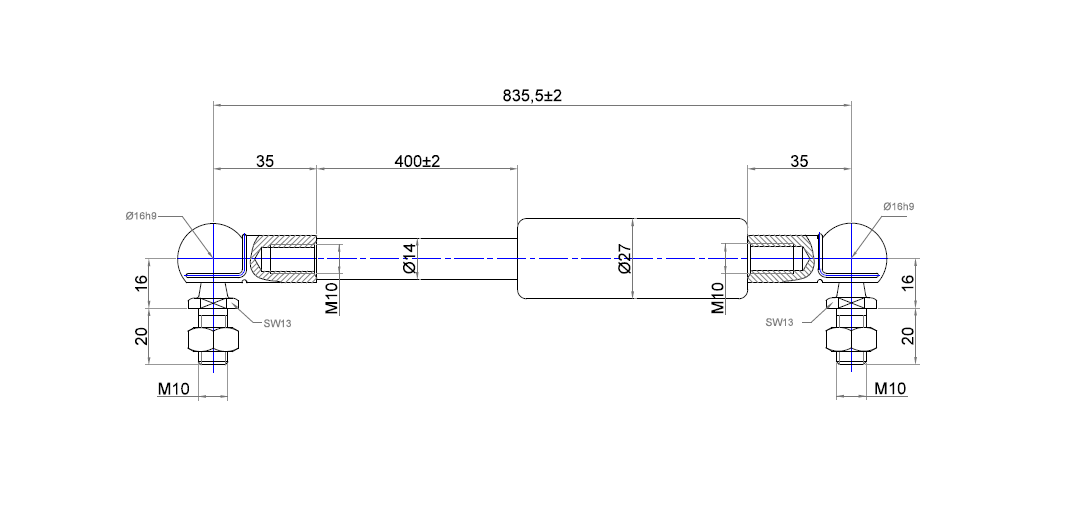

Gas spring manufactured in steel with M10 thread for mounting the end fittings. Stroke length is 400 mm and the force is 1700 N. The mounting length is 835,5 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Angle joint
Fitting, piston
Angle joint
Colour
Black
Material type
Steel
Mounting, cylinder side
M10
Mounting, piston side
M10
Oil chamber
No
Surface finish
Painted
Progression
50
Valve
No
Cylinder diameter in mm
27
Force in N
1700
Mounting length in mm
835.5
Stroke length
400
Piston diameter
14
Long description
Gas spring manufactured in steel with M10 thread for mounting the end fittings. Stroke length is 400 mm and the force is 1700 N. The mounting length is 835,5 mm. We can deliver a wide range of products on request. Please contact us for more information.
