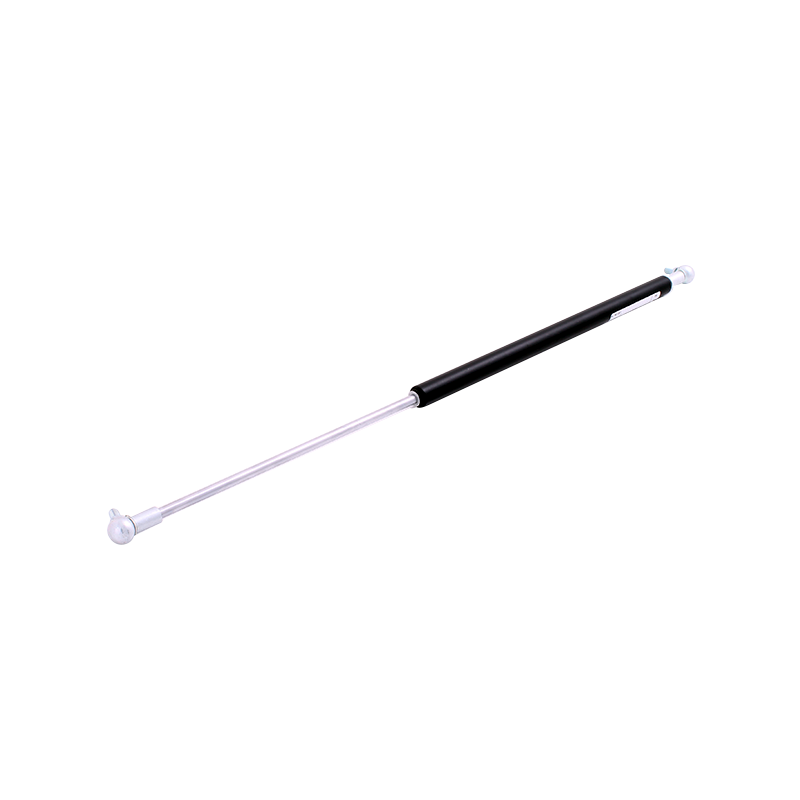

Gas spring, steel, M6 and M8 thread, stroke length = 200 mm, force = 250 N
MT113208
Gas spring manufactured in steel with M6 and M8 thread for mounting the end fittings. Stroke length is 200 mm and the force is 250 N. The mounting length is 510 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Angle joint
Fitting, piston
Eyelet
Colour
Black
Material type
Steel
Mounting, cylinder side
M8
Mounting, piston side
M6
Oil chamber
No
Surface finish
Painted
Progression
35
Valve
No
Cylinder diameter in mm
18
Force in N
250
Mounting length in mm
510
Stroke length
200
Piston diameter
8
Long description
Gas spring manufactured in steel with M6 and M8 thread for mounting the end fittings. Stroke length is 200 mm and the force is 250 N. The mounting length is 510 mm. We can deliver a wide range of products on request. Please contact us for more information.
