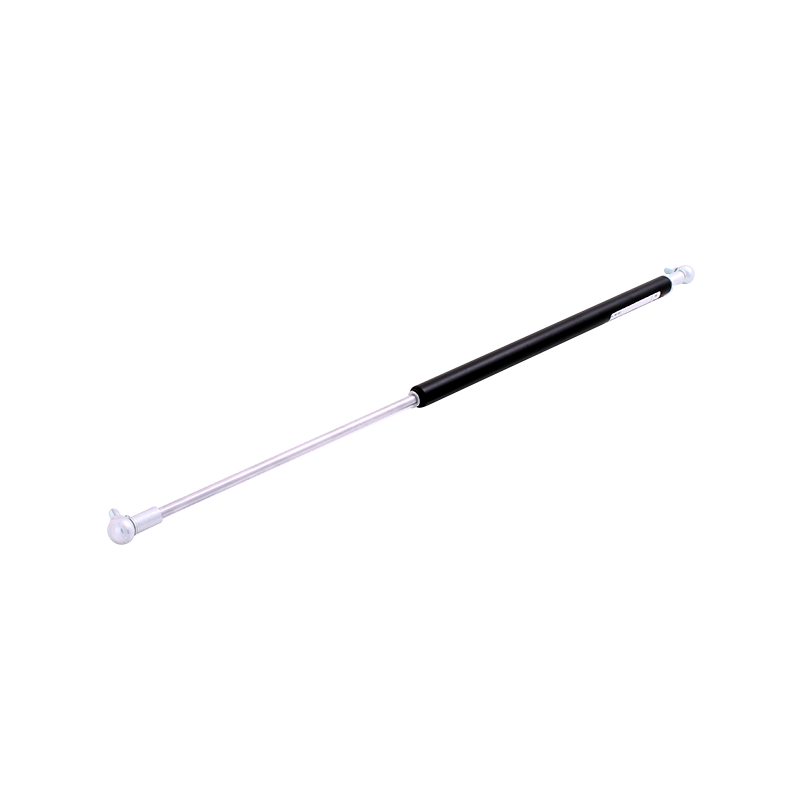

Gas spring, steel, M6 thread, stroke length = 100 mm, force = 50 N
MT107484

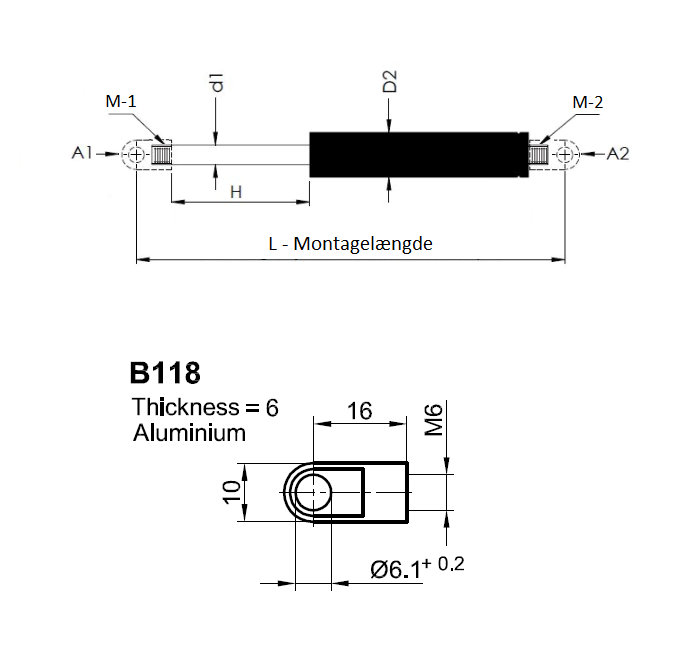

Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 100 mm and the force is 50 N. The mounting length is 266 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Material type
Steel
Mounting, cylinder side
M6
Mounting, piston side
M6
Oil chamber
No
Surface finish
Painted
Progression
30
Valve
No
Cylinder diameter in mm
15
Force in N
50
Mounting length in mm
266
Stroke length
100
Piston diameter
6
Long description
Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 100 mm and the force is 50 N. The mounting length is 266 mm. We can deliver a wide range of products on request. Please contact us for more information.
