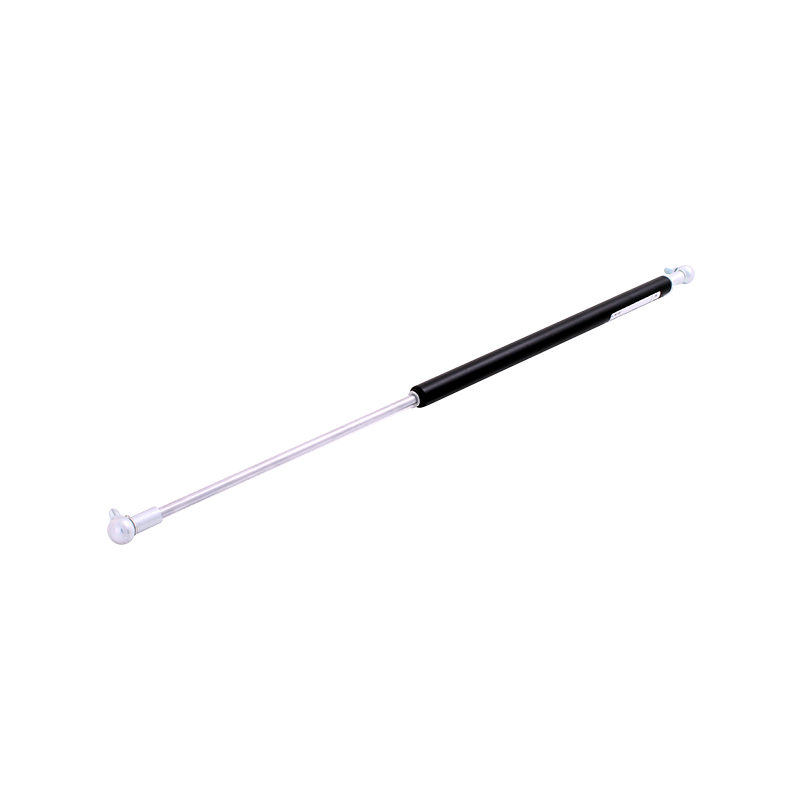

Gas spring, steel, M6 thread, stroke length = 150 mm, force = 300 N
MT108584
Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 150 mm and the force is 300 N. The mounting length is 385 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Material type
Steel
Mounting, cylinder side
M6
Mounting, piston side
M6
Oil chamber
No
Surface finish
Painted
Progression in %
35
Valve
No
Cylinder diameter in mm
18
Force in N
300
Mounting length in mm
385
Stroke
150
Piston diameter
8
Long description
Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 150 mm and the force is 300 N. The mounting length is 385 mm. We can deliver a wide range of products on request. Please contact us for more information.
