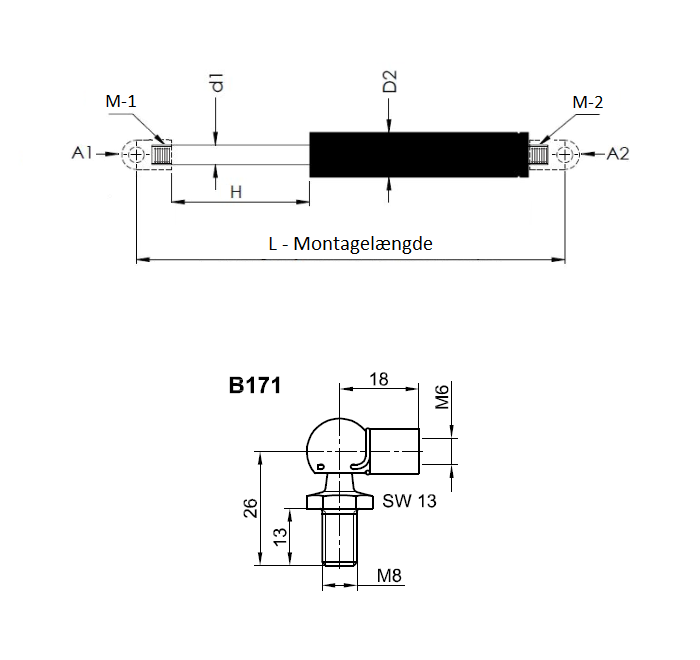

Gas spring, steel, M6 thread, stroke length = 170 mm, force = 50 N
MT107524
Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 170 mm and the force is 50 N. The mounting length is 438 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Angle joint
Fitting, piston
Angle joint
Material type
Steel
Mounting, cylinder side
M6
Mounting, piston side
M6
Oil chamber
No
Surface finish
Painted
Progression in %
30
Valve
No
Cylinder diameter in mm
15
Force in N
50
Mounting length in mm
438
Stroke
170
Piston diameter
6
Long description
Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 170 mm and the force is 50 N. The mounting length is 438 mm. We can deliver a wide range of products on request. Please contact us for more information.
