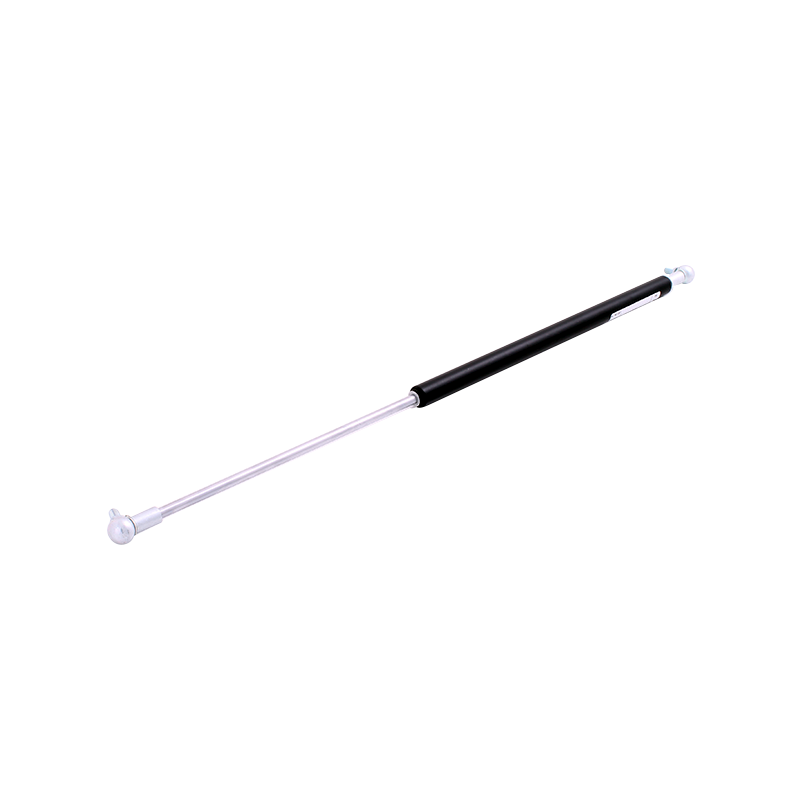

Gas spring, steel, M6 thread, stroke length = 225 mm, force = 130 N
MT108626

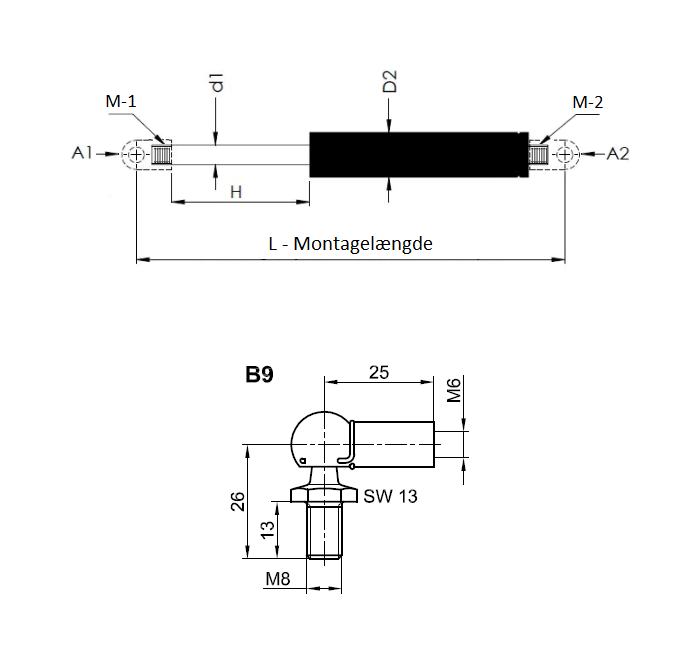

Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 225 mm and the force is 130 N. The mounting length is 500 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Angle joint
Fitting, piston
Angle joint
Material type
Steel
Mounting, cylinder side
M6
Mounting, piston side
M6
Oil chamber
No
Surface finish
Painted
Progression in %
35
Valve
No
Cylinder diameter in mm
18
Force in N
130
Mounting length in mm
500
Stroke
225
Piston diameter
8
Long description
Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 225 mm and the force is 130 N. The mounting length is 500 mm. We can deliver a wide range of products on request. Please contact us for more information.
