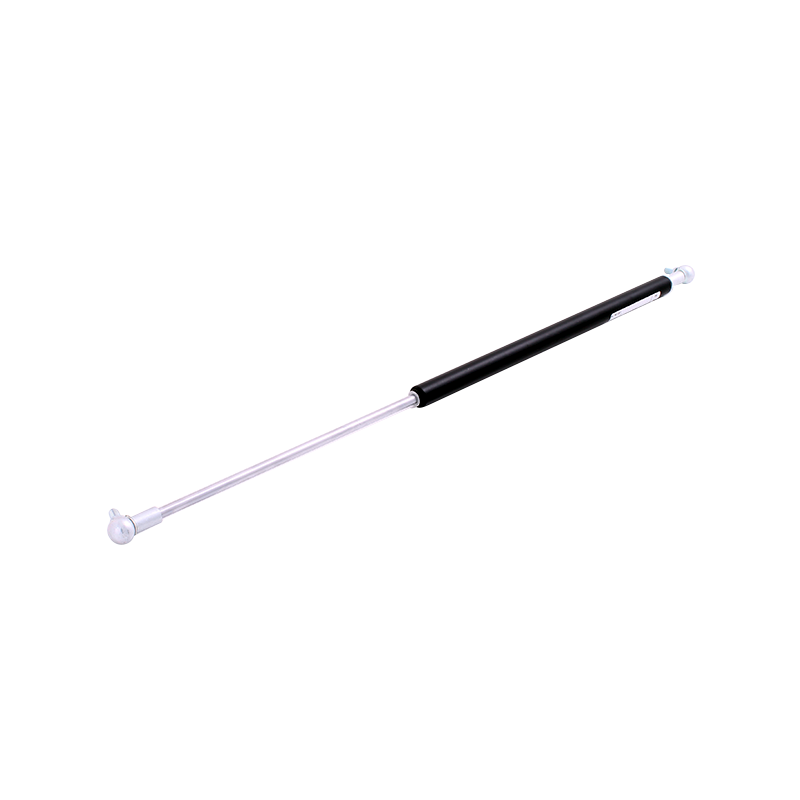

Gas spring, steel, M6 thread, stroke length = 230 mm, force = 220 N
MT113094
Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 230 mm and the force is 220 N. The mounting length is 565 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Colour
Black
Material type
Steel
Mounting, cylinder side
M6
Mounting, piston side
M6
Oil chamber
No
Surface finish
Painted
Progression in %
35
Valve
No
Cylinder diameter in mm
18
Force in N
220
Mounting length in mm
565
Stroke
230
Piston diameter
8
Long description
Gas spring manufactured in steel with M6 thread for mounting the end fittings. Stroke length is 230 mm and the force is 220 N. The mounting length is 565 mm. We can deliver a wide range of products on request. Please contact us for more information.
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
