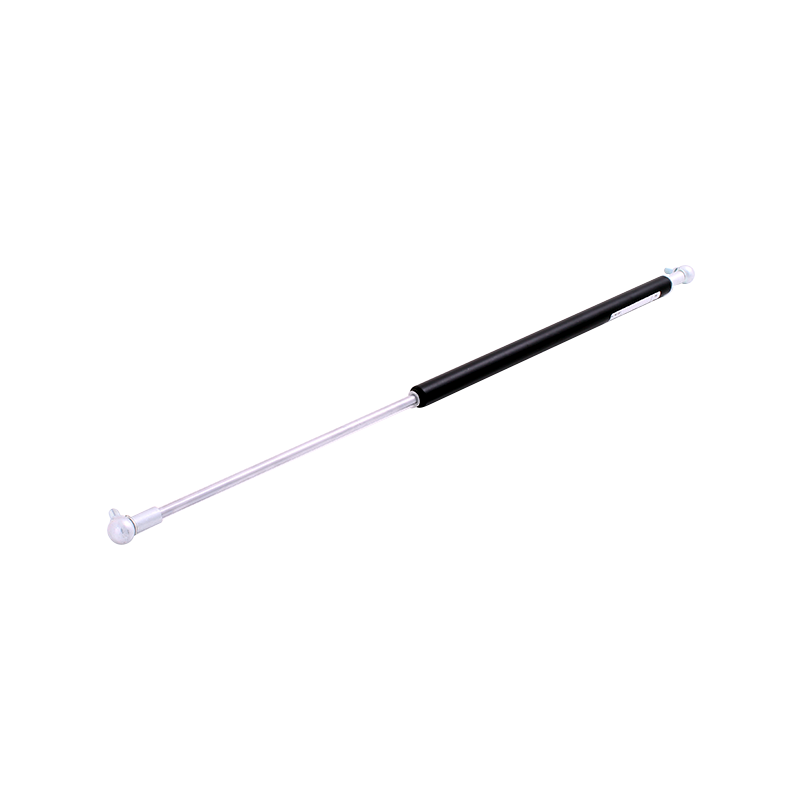

Gas spring, steel, M8 thread, stroke length = 121 mm, force = 600 N
MT101951

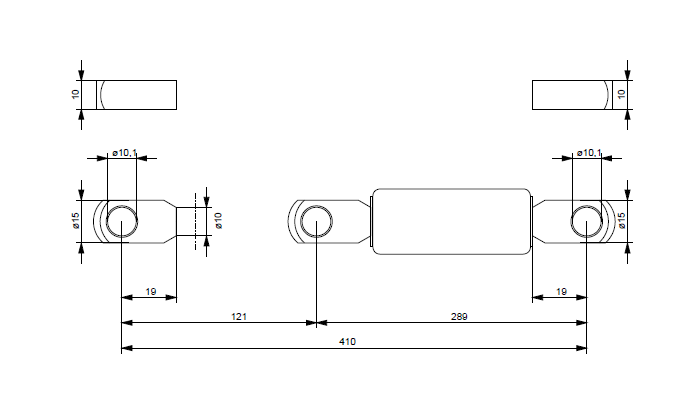

Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 121 mm and the force is 600 N. The mounting length is 410 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Colour
Black
Material type
Steel
Mounting, cylinder side
M8
Mounting, piston side
M8
Oil chamber
No
Surface finish
Electro zinc plated + UV-paint
Progression
18,8
Valve
No
Cylinder diameter in mm
23
Force in N
600
Mounting length in mm
410
Stroke length
121
Piston diameter
10
Nettovægt
0.391
Varekode
8302490099
Lande-/områdekode for oprindelse
DE
Long description
Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 121 mm and the force is 600 N. The mounting length is 410 mm. We can deliver a wide range of products on request. Please contact us for more information.
