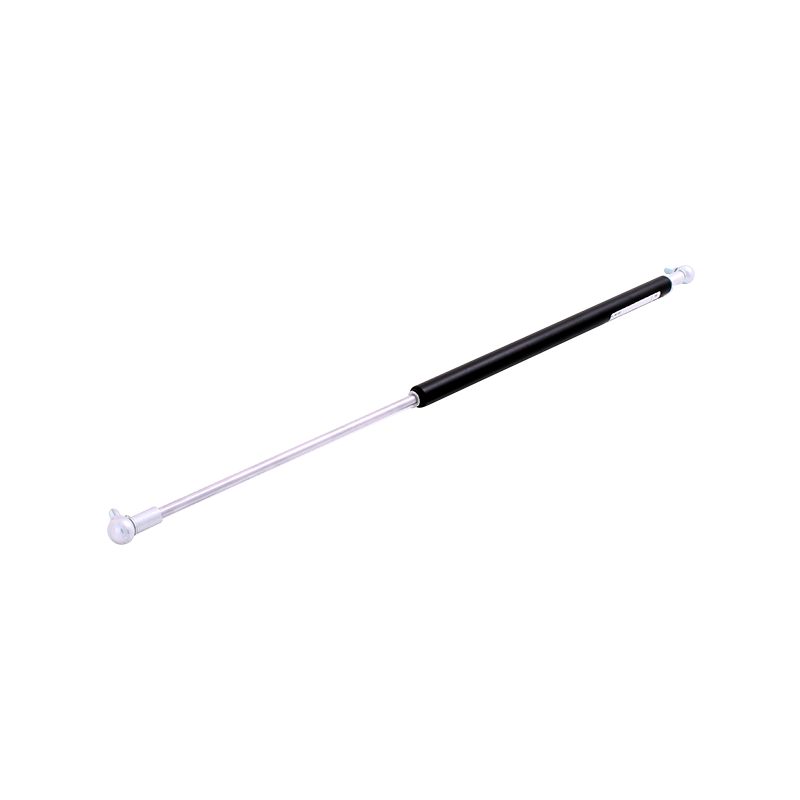

Gas spring, steel, M8 thread, stroke length = 133 mm, force = 180 N
MT108659

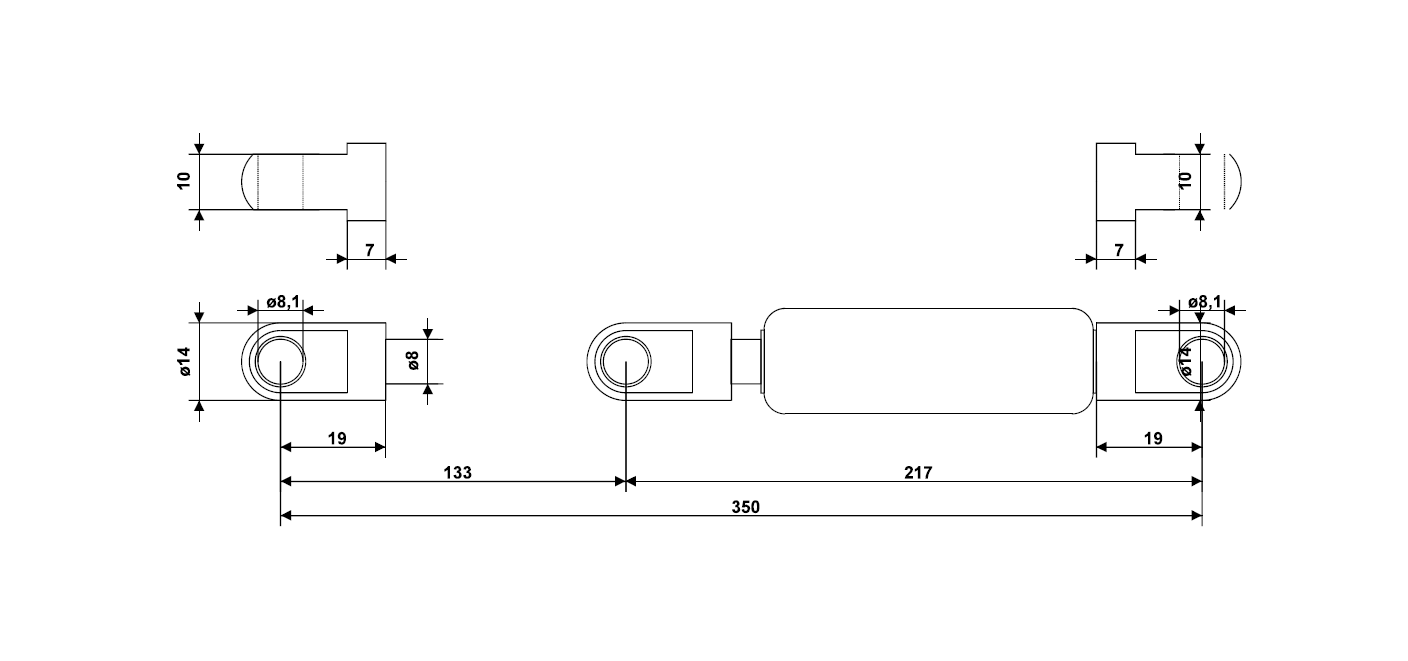

Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 133 mm and the force is 180 N. The mounting length is 350 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Material type
Steel
Mounting, cylinder side
M8
Mounting, piston side
M8
Oil chamber
No
Surface finish
Painted
Progression in %
95,8
Valve
Yes
Cylinder diameter in mm
19
Force in N
180
Mounting length in mm
350
Stroke
133
Piston diameter
8
Long description
Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 133 mm and the force is 180 N. The mounting length is 350 mm. We can deliver a wide range of products on request. Please contact us for more information.
