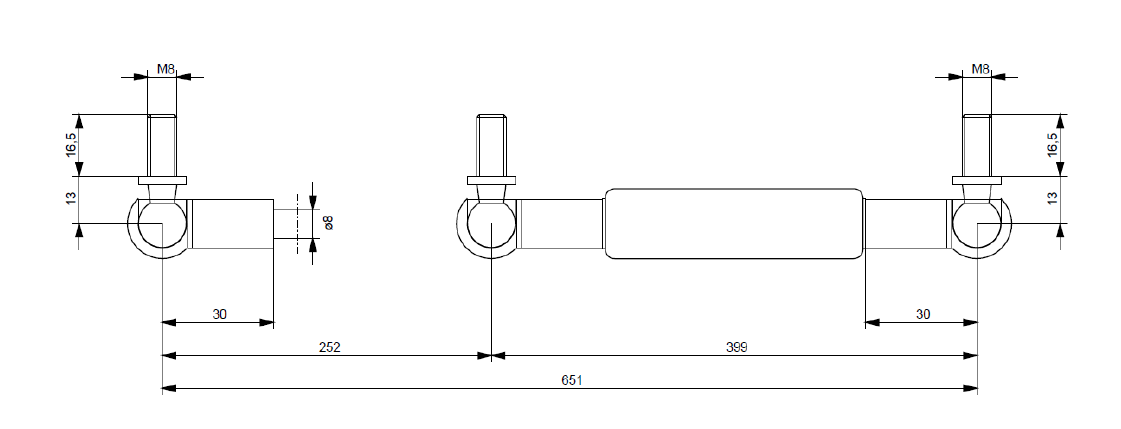

Gas spring, steel, M8 thread, stroke length = 252 mm, force = 60 N
MT108674
Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 252 mm and the force is 60 N. The mounting length is 651 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Angle joint
Fitting, piston
Angle joint
Material type
Steel
Mounting, cylinder side
M8
Mounting, piston side
M8
Oil chamber
No
Surface finish
Painted
Progression
28,3
Valve
No
Cylinder diameter in mm
19
Force in N
60
Mounting length in mm
651
Stroke length
252
Piston diameter
8
Long description
Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 252 mm and the force is 60 N. The mounting length is 651 mm. We can deliver a wide range of products on request. Please contact us for more information.
