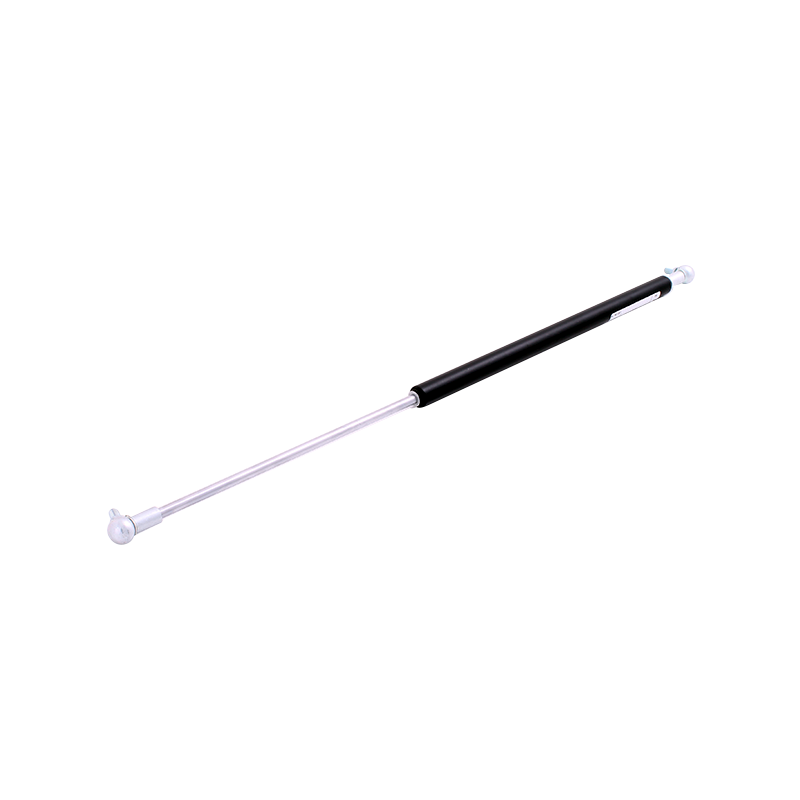

Gas spring, steel, M8 thread, stroke length = 300 mm, force = 400 N
MT101843

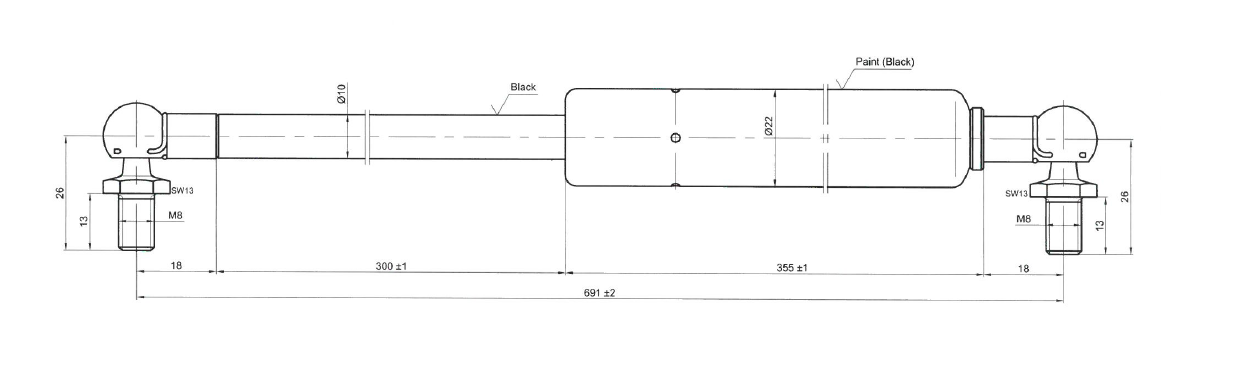

Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 300 mm and the force is 400 N. The mounting length is 691 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Angle joint
Fitting, piston
Angle joint
Material type
Steel
Mounting, cylinder side
M8
Mounting, piston side
M8
Oil chamber
No
Surface finish
Painted
Progression
40
Valve
No
Cylinder diameter in mm
22
Force in N
400
Mounting length in mm
691
Stroke length
300
Piston diameter
10
Long description
Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 300 mm and the force is 400 N. The mounting length is 691 mm. We can deliver a wide range of products on request. Please contact us for more information.
