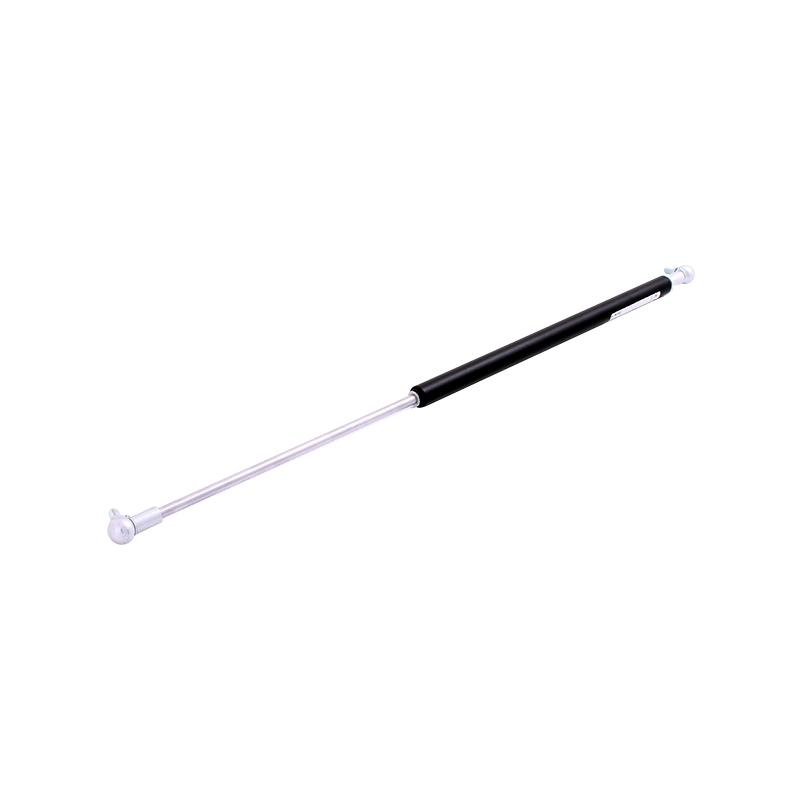

Gas spring, steel, M8 thread, stroke length = 315 mm, force = 200 N
MT113042
Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 315 mm and the force is 200 N. The mounting length is 700 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Dynamic
Colour
White
Material type
Steel
Mounting, cylinder side
M8
Mounting, piston side
M8
Oil chamber
No
Surface finish
Painted
Progression in %
45
Valve
No
Cylinder diameter in mm
22
Force in N
200
Mounting length in mm
700
Stroke
315
Piston diameter
10
Long description
Gas spring manufactured in steel with M8 thread for mounting the end fittings. Stroke length is 315 mm and the force is 200 N. The mounting length is 700 mm. We can deliver a wide range of products on request. Please contact us for more information.
