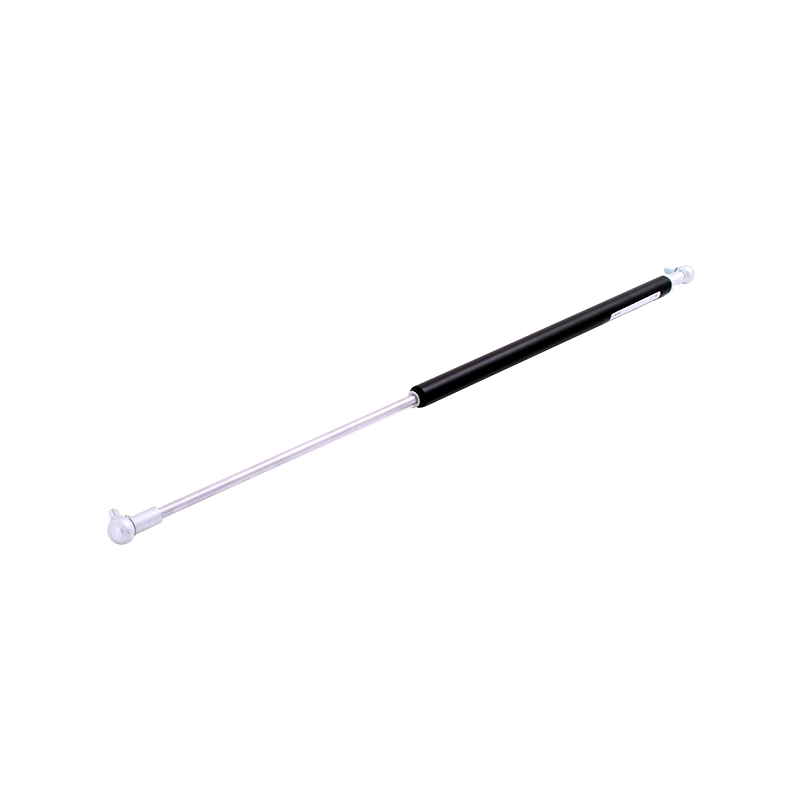

Gas spring, steel, welded thread, stroke length = 120 mm, force = 420 N
MT107490

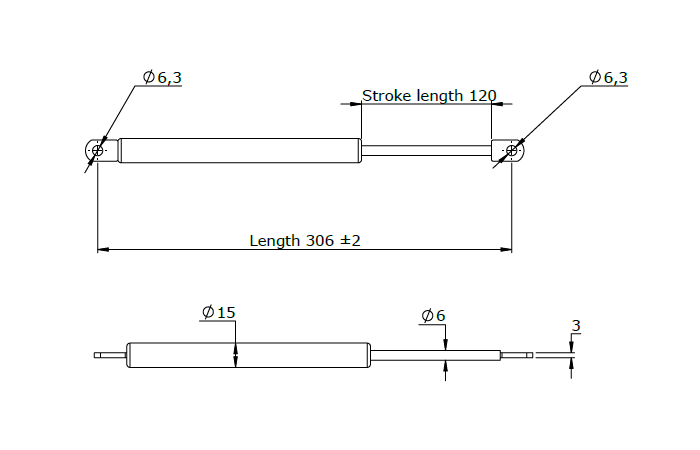

Gas spring manufactured in steel with welded thread for mounting the end fittings. Stroke length is 120 mm and the force is 420 N. The mounting length is 306 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Material type
Steel
Mounting, cylinder side
Welded
Mounting, piston side
Welded
Oil chamber
No
Surface finish
Painted
Progression
30
Valve
No
Cylinder diameter in mm
15
Force in N
420
Mounting length in mm
306
Stroke length
120
Piston diameter
6
Long description
Gas spring manufactured in steel with welded thread for mounting the end fittings. Stroke length is 120 mm and the force is 420 N. The mounting length is 306 mm. We can deliver a wide range of products on request. Please contact us for more information.
