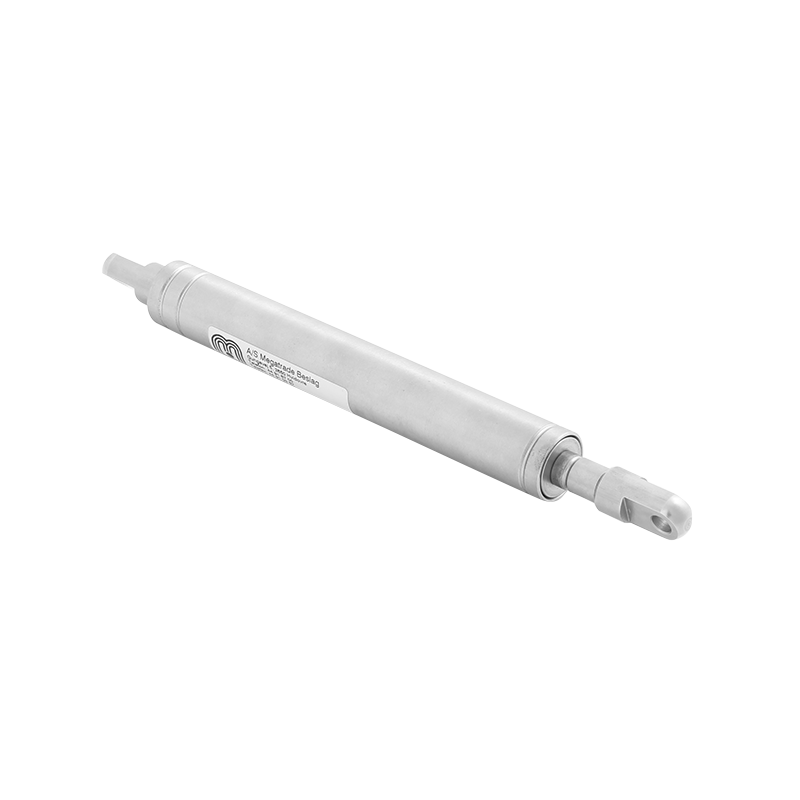

Tension Gas Springs, stainless steel, M14 thread, stroke length = 350 mm, force = 1300 N
MT105360
Tension Gas Springs manufactured in stainless steel with M14 thread for mounting end fittings. The stroke length is 350 mm and the force is 1300 N. The mounting length is 1084 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Material type
Stainless steel
Mounting, cylinder side
M14
Mounting, piston side
M14
Oil chamber
No
Progression
42
Valve
Yes
Cylinder diameter in mm
40
Force in N
1300
Mounting length in mm
1084
Stroke length
350
Piston diameter
28
Long description
Tension Gas Springs manufactured in stainless steel with M14 thread for mounting end fittings. The stroke length is 350 mm and the force is 1300 N. The mounting length is 1084 mm. We can deliver a wide range of products on request. Please contact us for more information.
