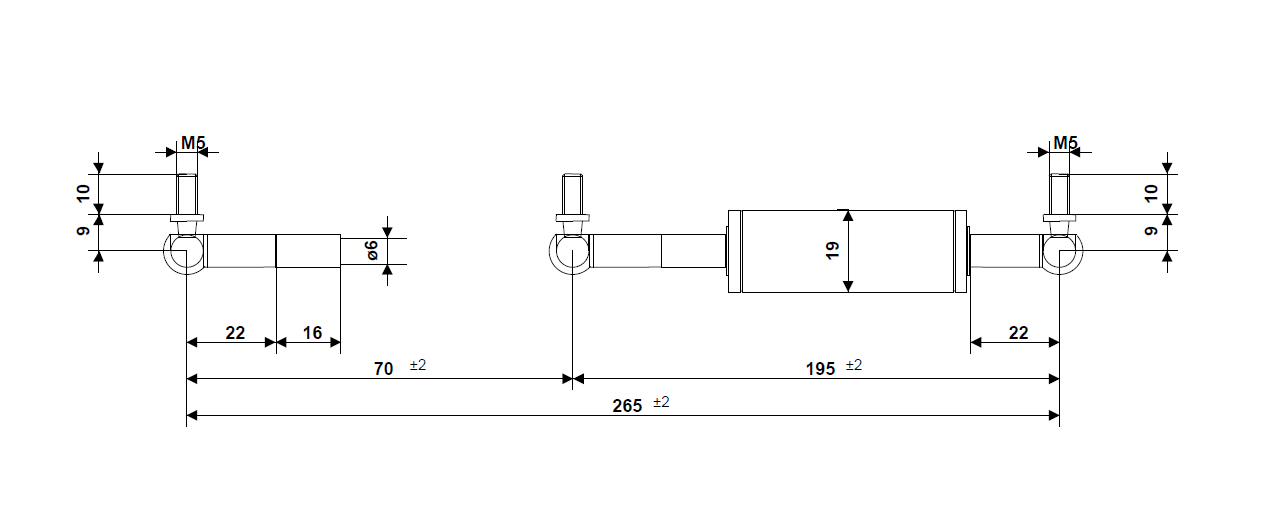

Tension Gas Springs, steel, M5 thread, stroke length = 70 mm, force = 150 N
MT112030
Tension Gas Springs manufactured in steel with M5 thread for mounting end fittings. The stroke length is 70 mm and the force is 150 N. The mounting length is 265mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Angle joint
Fitting, piston
Angle joint
Colour
Black
Material type
Steel
Mounting, cylinder side
M5
Mounting, piston side
M5
Oil chamber
No
Surface finish
Painted
Progression
25,1
Valve
Yes
Cylinder diameter in mm
19
Force in N
150
Mounting length in mm
265
Stroke length
70
Piston diameter
6
Long description
Tension Gas Springs manufactured in steel with M5 thread for mounting end fittings. The stroke length is 70 mm and the force is 150 N. The mounting length is 265mm. We can deliver a wide range of products on request. Please contact us for more information.
