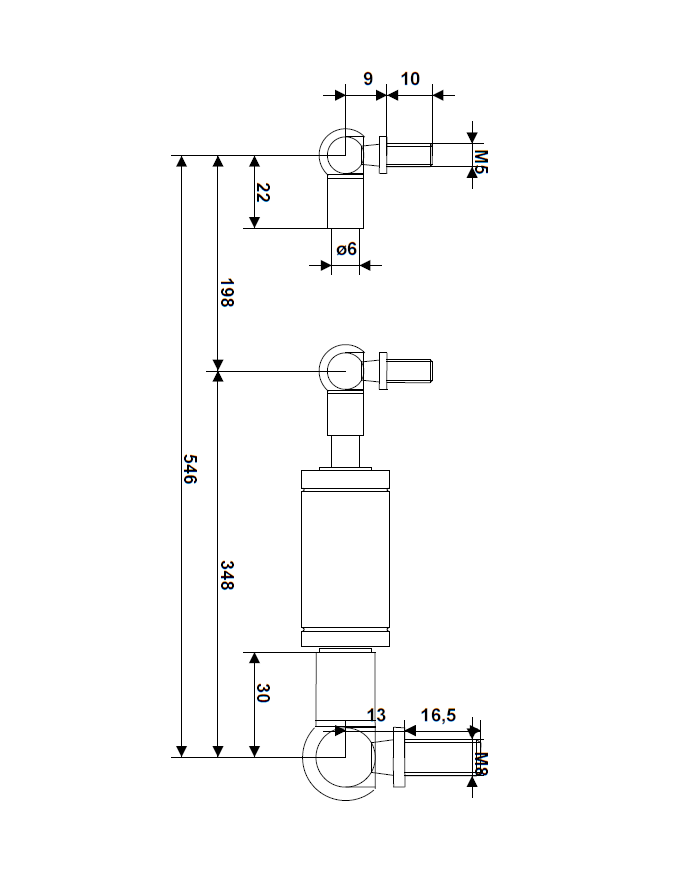

Damper, stainless steel, M5, cylinder diameter = 19 mm, force = 0 N, stroke length = 198 mm
MT107551
Damper in stainless steel with M5 thread an a cylinder diameter of 19 mm. The force is 0 N and the stroke length is 198 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Both directions
Fitting, cylinder
Angle joint
Fitting, piston
Angle joint
Material type
Stainless steel
Mounting, cylinder side
M8
Mounting, piston side
M5
Cylinder diameter in mm
19
Force in N
0
Mounting length in mm
546
Stroke length
198
Piston diameter
6
Long description
Damper in stainless steel with M5 thread an a cylinder diameter of 19 mm. The force is 0 N and the stroke length is 198 mm. We can deliver a wide range of products on request. Please contact us for more information.
