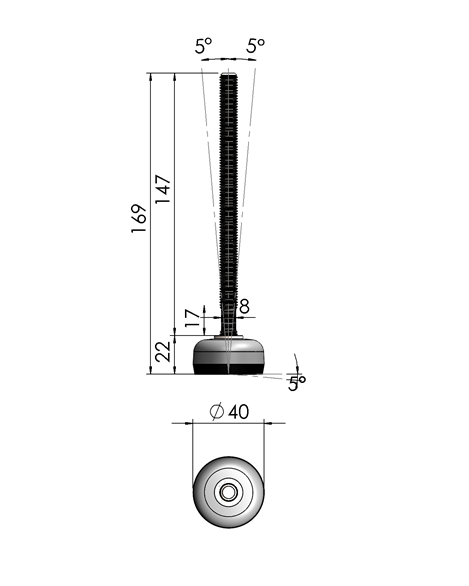

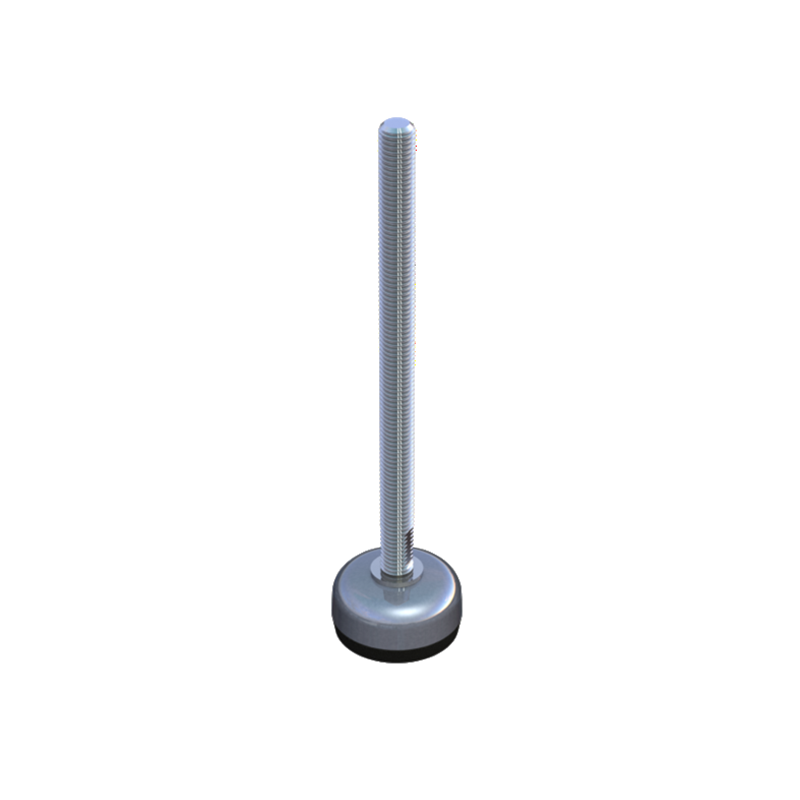

Levelling foot, acid proof stainless steel, fixed threaded spindle, M10, base diameter = 40 mm
MT110303
Levelling foot in acid proof stainless steel with fixed threaded spindle and M10 thread. Base diameter = 40 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Tread size
M10
Rubber pad
Yes
Material type
Acid proof Stainless Steel
Foot height
22
Wrench
8
Type
Fixed threaded spindle
Diameter in mm
40
Thread length in mm
147
Height in mm
169
Hardness in °
0
Maximum load in kg
255
Long description
Levelling foot in acid proof stainless steel with fixed threaded spindle and M10 thread. Base diameter = 40 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
