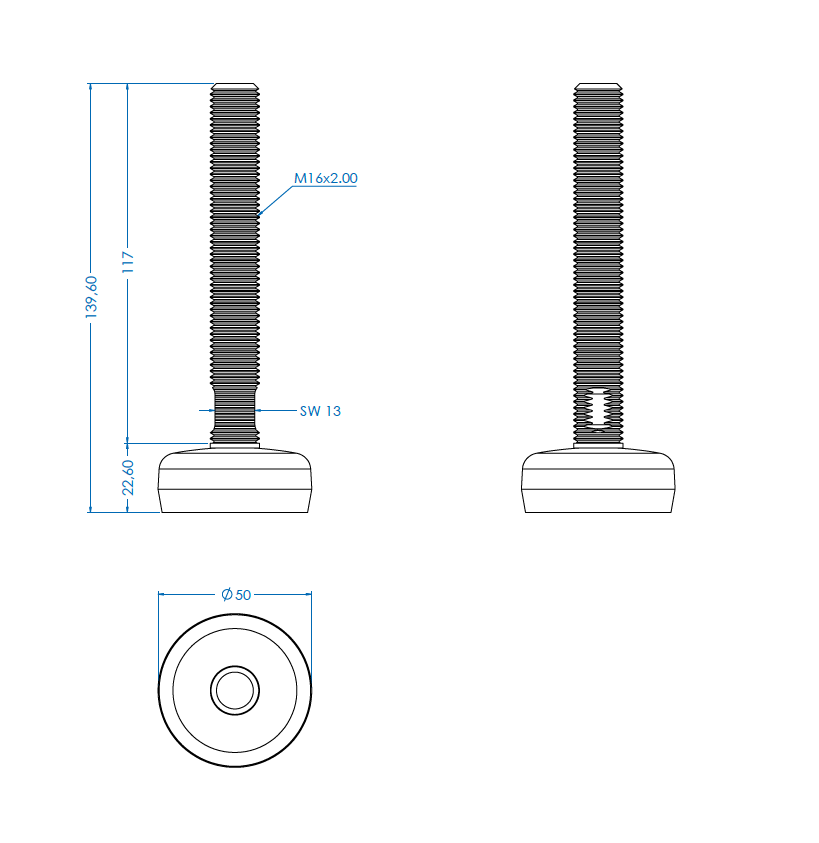

Levelling foot, acid proof stainless steel, fixed threaded spindle, M16, base diameter = 50 mm
MT110373
Levelling foot in acid proof stainless steel with fixed threaded spindle and M16 thread. Base diameter = 50 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Tread size
M16
Rubber material
Polyurethane
Rubber pad
Yes
Shore standard
Shore A
Material type
Acid proof Stainless Steel
Foot height
22,6
Wrench
0
Type
Fixed threaded spindle
Diameter in mm
50
Thread length in mm
117
Height in mm
140
Hardness in °
70
Maximum load in kg
400
Long description
Levelling foot in acid proof stainless steel with fixed threaded spindle and M16 thread. Base diameter = 50 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
