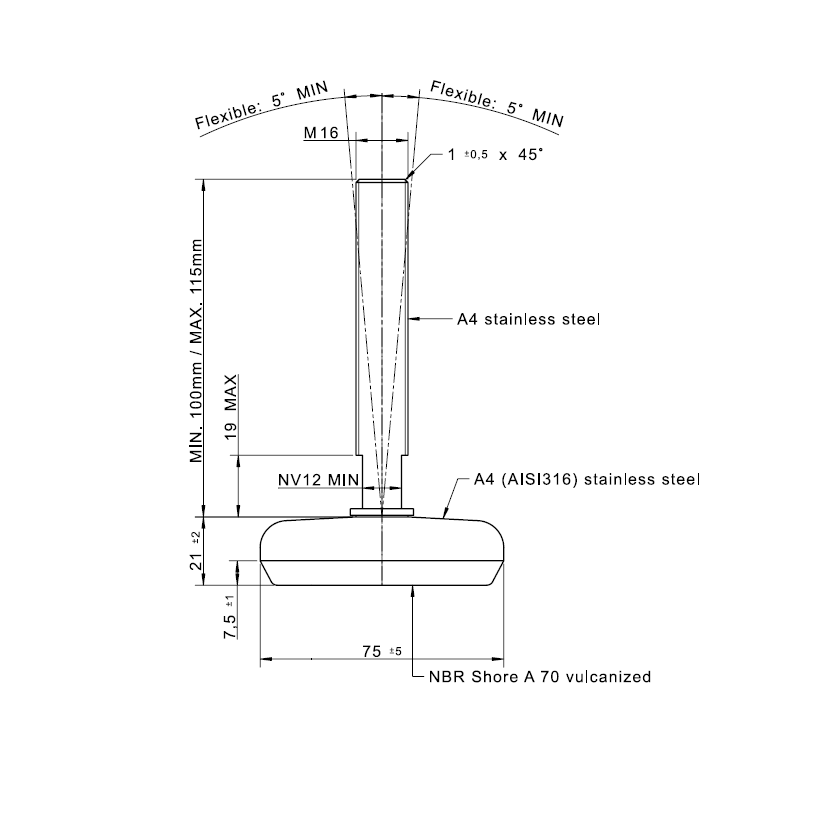

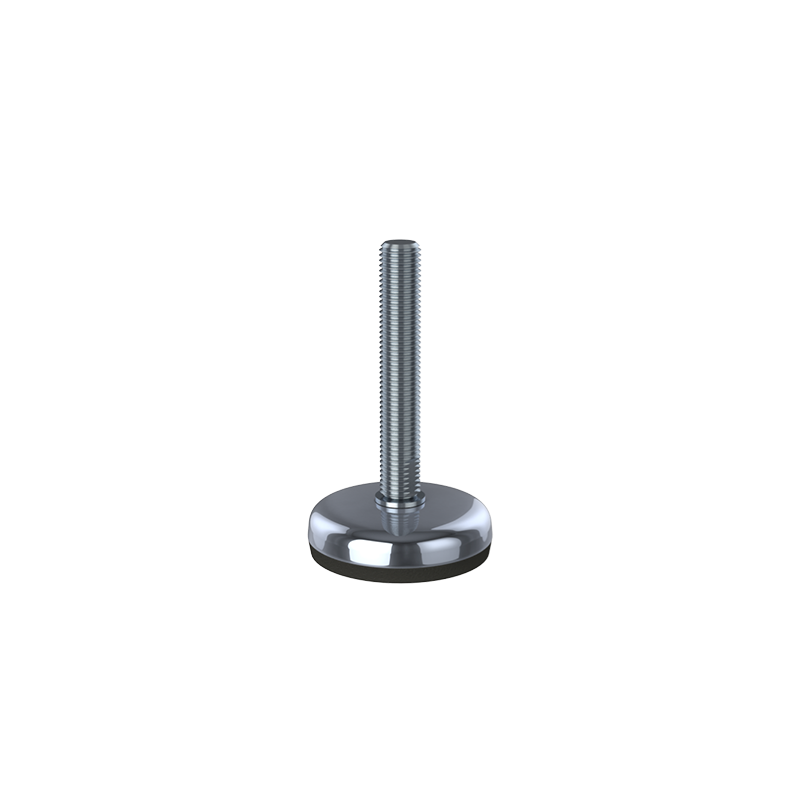

Levelling foot, acid proof stainless steel, fixed threaded spindle, M16, base diameter = 75 mm
MT110375
Levelling foot in acid proof stainless steel with fixed threaded spindle and M16 thread. Base diameter = 75 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Tread size
M16
Rubber material
NBR
Rubber pad
Yes
Shore standard
Shore A
Material type
Acid proof Stainless Steel
Foot height
21
Wrench
12
Type
Fixed threaded spindle
Diameter in mm
75
Thread length in mm
115
Height in mm
136
Hardness in °
70
Maximum load in kg
1020
Long description
Levelling foot in acid proof stainless steel with fixed threaded spindle and M16 thread. Base diameter = 75 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
