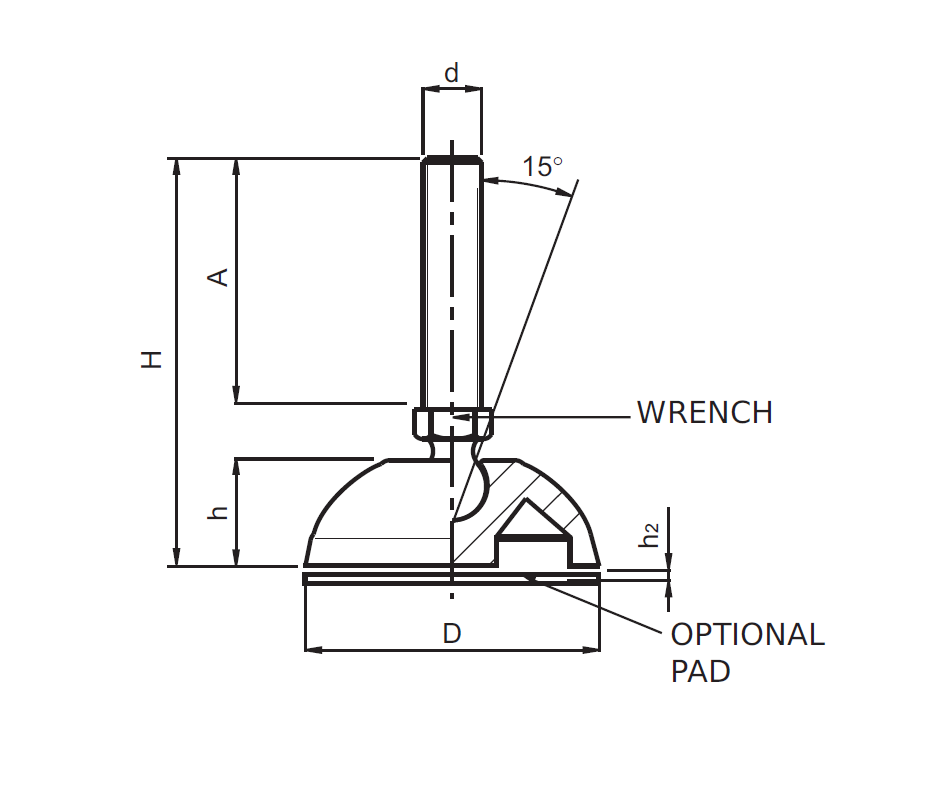

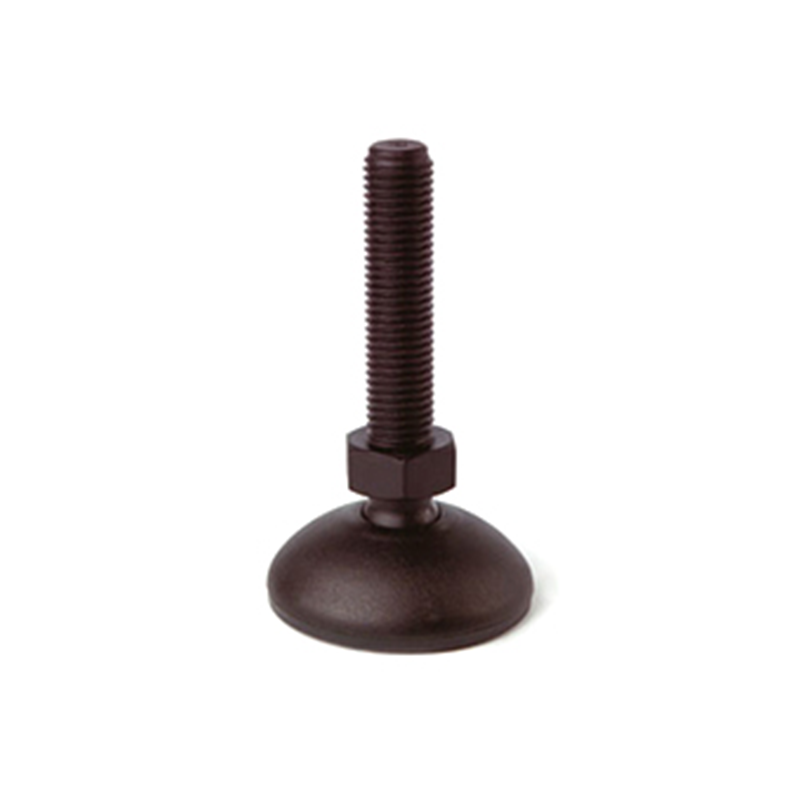

Levelling foot, glass fiber reinforced polyamide, tiltable threaded spindle, M16, base diameter = 60 mm
MT106138
Levelling foot in glass fiber reinforced polyamide with tiltable threaded spindle and M16 thread. Base diameter = 60 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more informa
Colour
Black
Fixing to floor
No
Fodmateriale
Glass fiber reinforced polyamide
Tread size
M16
Rubber pad
Purchased separately
Material type
Glass fiber reinforced polyamide
Skohøjde
17
Skruenøgle
24
Type
Tiltable threaded spindle
Diameter in mm
60
Gevindlængde i mm
67
Height in mm
101
Hardness in °
0
Maksimum belastning i kg
700
Net Weight (Kg)
0.2
HS Code
6603901000
Country of Origin
ES
Long description
Levelling foot in glass fiber reinforced polyamide with tiltable threaded spindle and M16 thread. Base diameter = 60 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more informa
