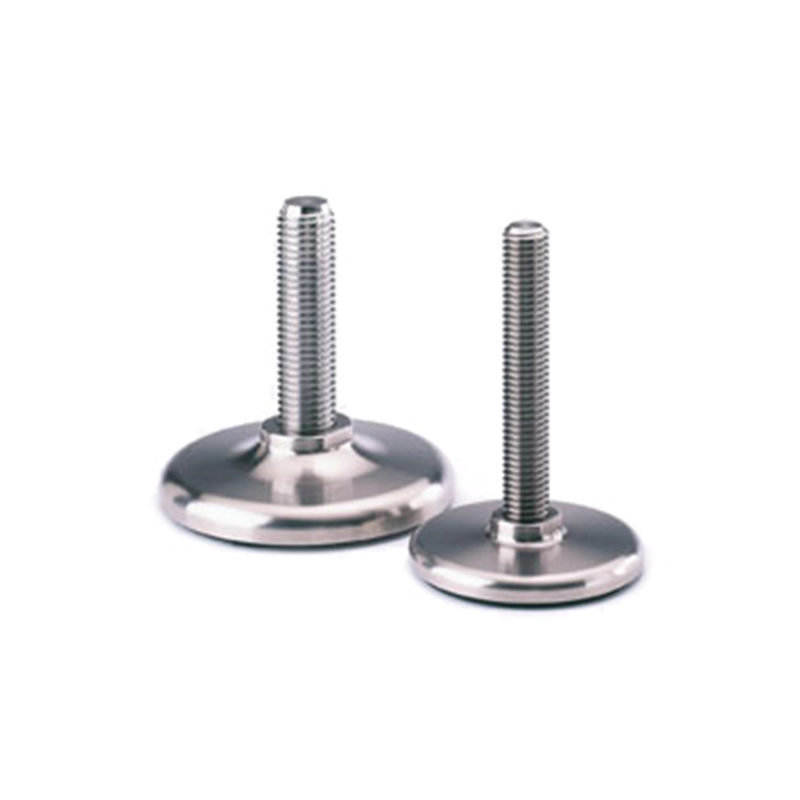

Levelling foot, stainless steel, fixed threaded spindle, M10, base diameter = 50 mm
MT108679
Levelling foot in stainless steel with fixed threaded spindle and M10 thread. Base diameter = 50 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Fixing to floor
No
Tread size
M10
Rubber material
NBR
Rubber pad
Yes
Material type
Stainless steel
Skohøjde
14
Skruenøgle
0
Type
Fixed threaded spindle
Diameter in mm
50
Gevindlængde i mm
80
Height in mm
94
Hardness in °
0
Maksimum belastning i kg
600
Long description
Levelling foot in stainless steel with fixed threaded spindle and M10 thread. Base diameter = 50 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
