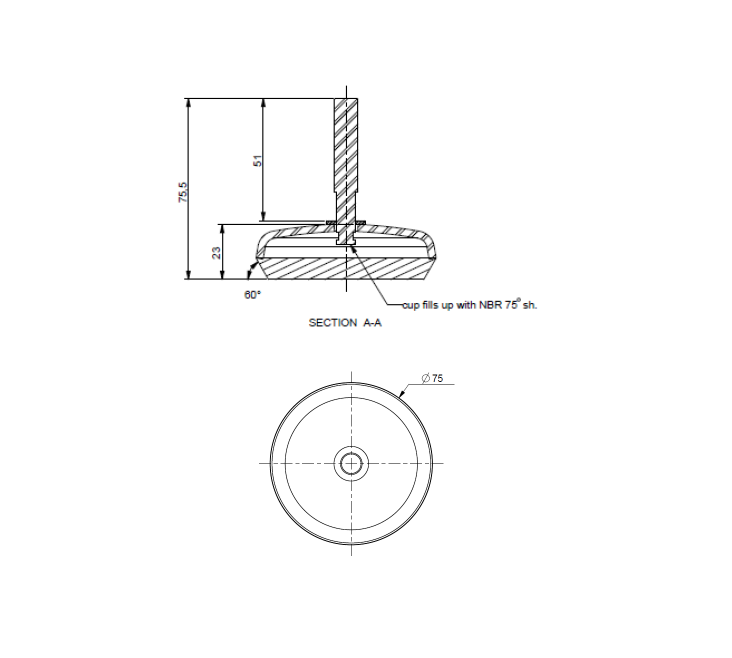

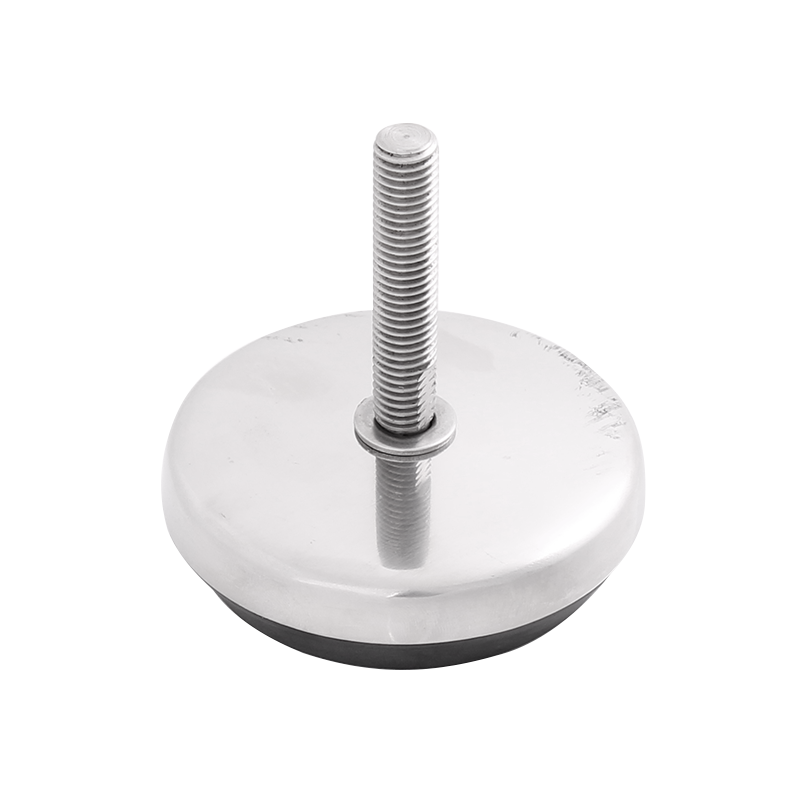

Levelling foot, stainless steel, fixed threaded spindle, M10, base diameter = 75 mm
MT110374
Levelling foot in stainless steel with fixed threaded spindle and M10 thread. Base diameter is 75 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Base material
NBR
Tread size
M10
Rubber pad
Yes
Shore standard
Shore A
Material type
Stainless steel
Foot height
23
Type
Fixed threaded spindle
Diameter in mm
75
Thread length in mm
50
Height in mm
75.5
Hardness in °
75
Maximum load in kg
0
Long description
Levelling foot in stainless steel with fixed threaded spindle and M10 thread. Base diameter is 75 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
