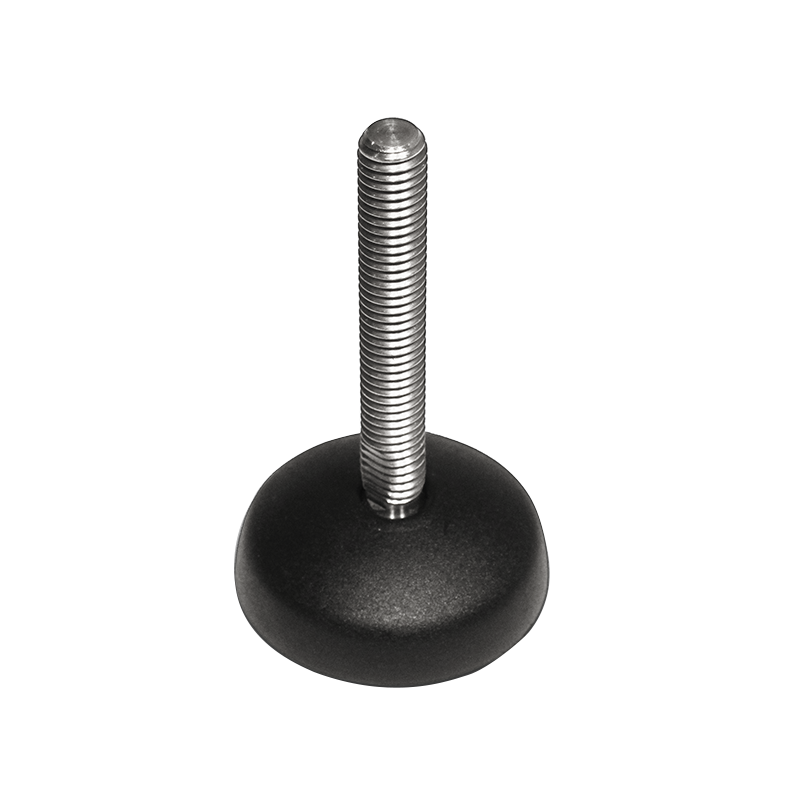

Levelling foot, stainless steel, tiltable threaded spindle, M10, base diameter = 50 mm
MT106128
Levelling foot in stainless steel with tiltable threaded spindle and M10 thread. Base diameter is 50 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Base material
Glass fiber reinforced polyamide
Tread size
M10
Rubber pad
Purchased separately
Material type
Stainless steel
Foot height
13
Wrench
8
Type
Tiltable threaded spindle
Diameter in mm
50
Thread length in mm
35
Height in mm
60
Hardness in °
0
Maximum load in kg
1200
Long description
Levelling foot in stainless steel with tiltable threaded spindle and M10 thread. Base diameter is 50 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
