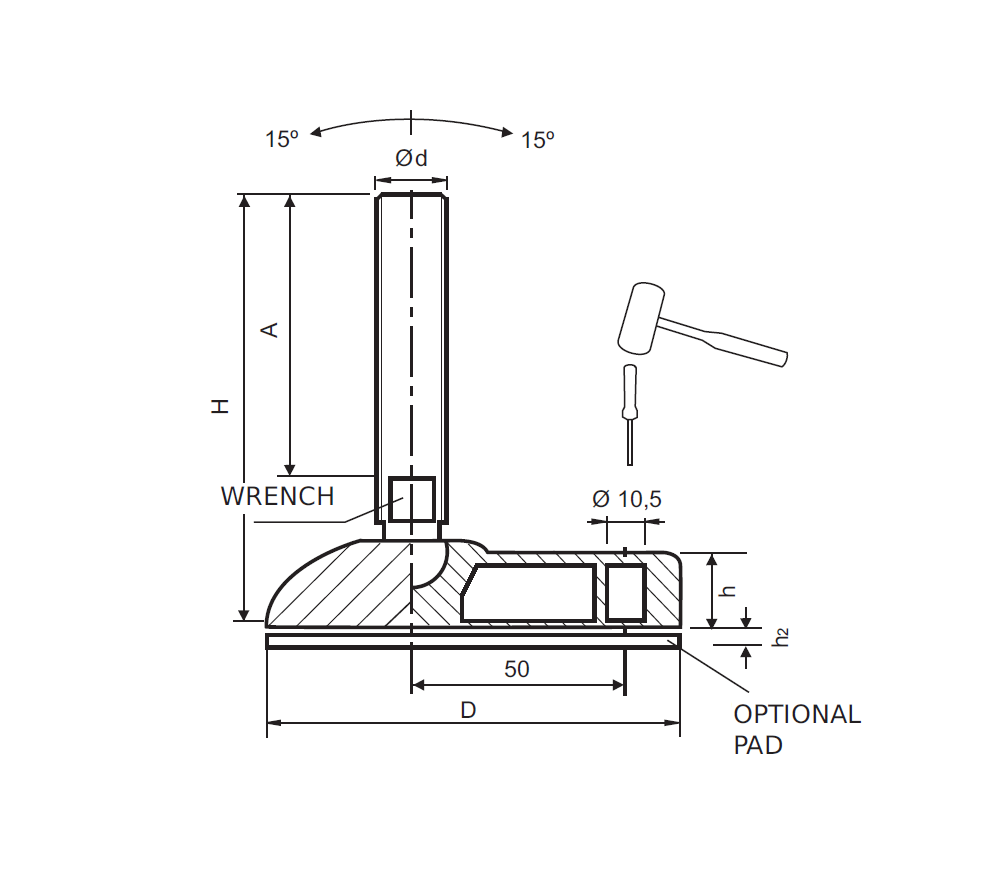

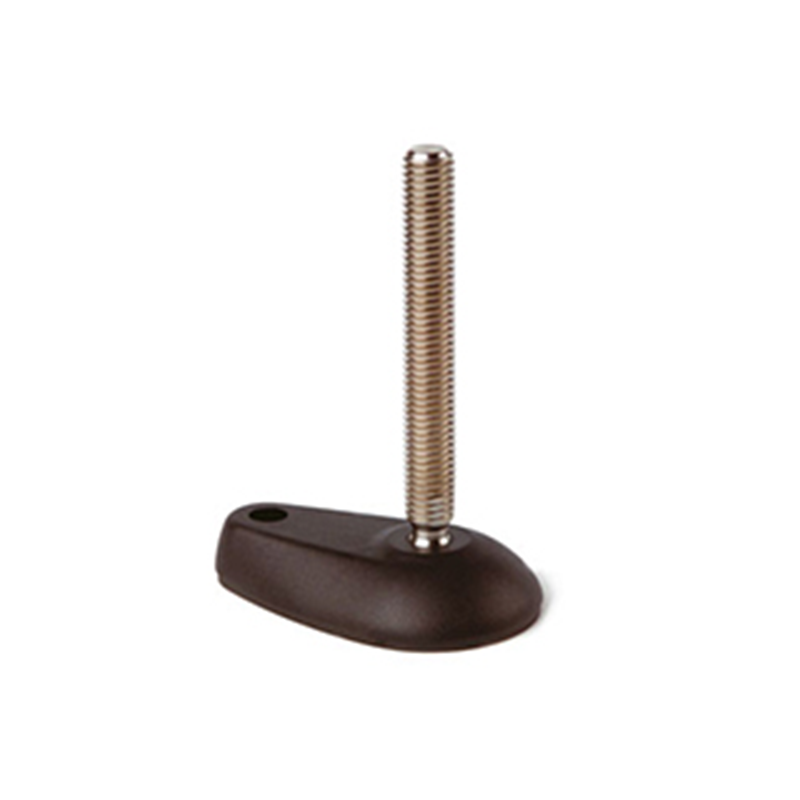

Levelling foot, stainless steel, tiltable threaded spindle, M10, base diameter = 95 mm
MT106137
Levelling foot in stainless steel with tiltable threaded spindle and M10 thread. Base diameter = 95 mm. The levelling foot can be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
Yes
Fodmateriale
Glass fiber reinforced polyamide
Tread size
M10
Rubber pad
Purchased separately
Material type
Stainless steel
Skohøjde
15
Skruenøgle
8
Type
Tiltable threaded spindle
Diameter in mm
95
Gevindlængde i mm
70
Height in mm
99
Hardness in °
0
Maksimum belastning i kg
1300
Long description
Levelling foot in stainless steel with tiltable threaded spindle and M10 thread. Base diameter = 95 mm. The levelling foot can be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
