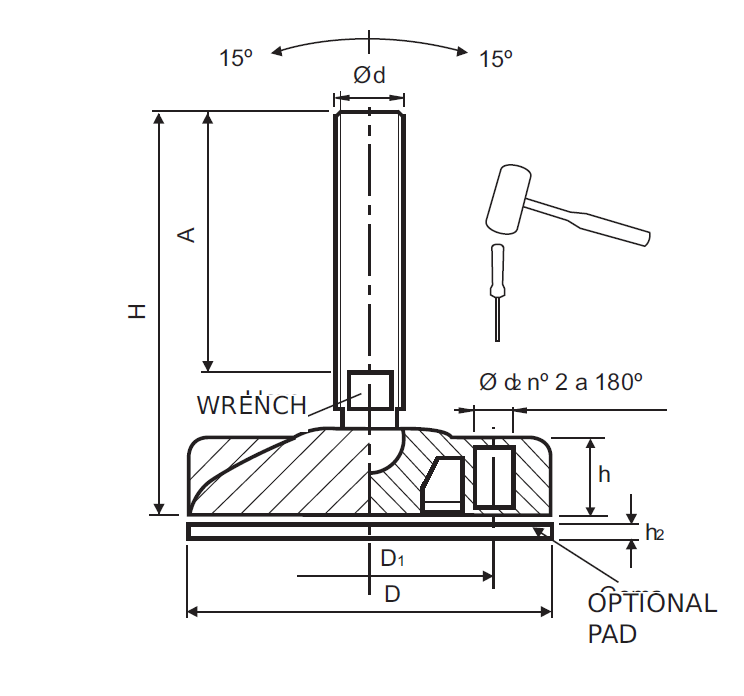

Levelling foot, stainless steel, tiltable threaded spindle, M16, base diameter = 102 mm
MT106134
Levelling foot in stainless steel with tiltable threaded spindle and M16 thread. Base diameter is 102 mm. The levelling foot can be mounted to the floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
Yes
Base material
Glass fiber reinforced polyamide
Tread size
M16
Rubber pad
Purchased separately
Material type
Stainless steel
Foot height
18
Wrench
13
Type
Tiltable threaded spindle
Diameter in mm
102
Thread length in mm
125
Height in mm
165
Hardness in °
0
Maximum load in kg
2200
Long description
Levelling foot in stainless steel with tiltable threaded spindle and M16 thread. Base diameter is 102 mm. The levelling foot can be mounted to the floor. We can deliver a wide range of products on request. Please contact us for more information.
