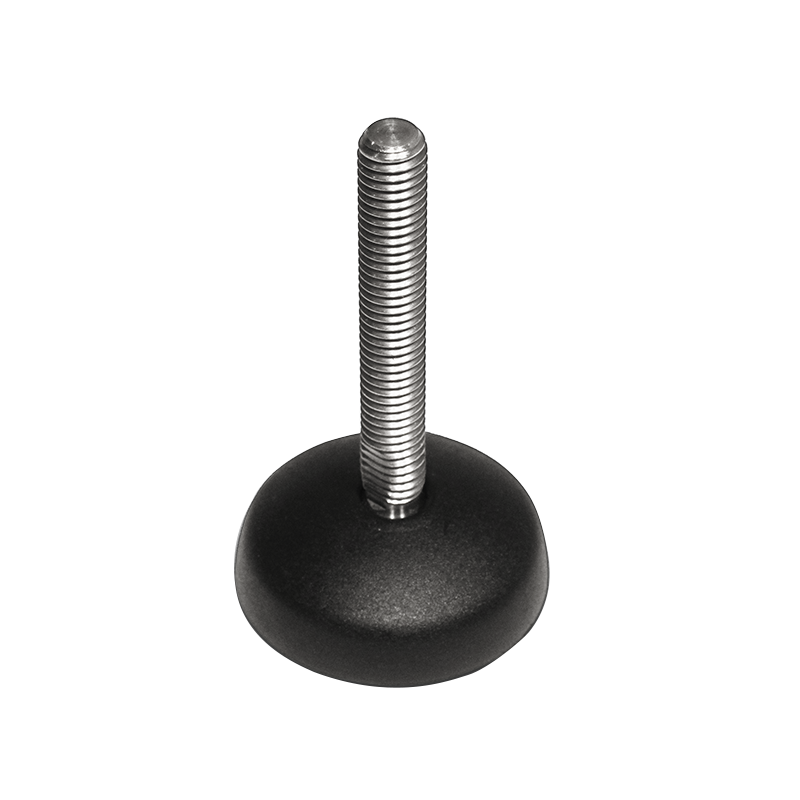

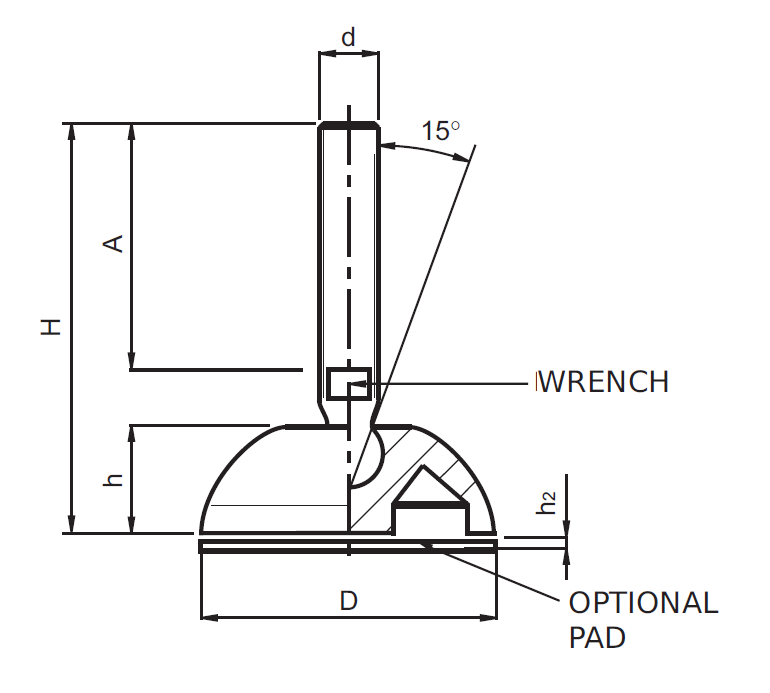

Levelling foot, stainless steel, tiltable threaded spindle, M8, base diameter = 40 mm
MT106125
Levelling foot in stainless steel with tiltable threaded spindle and M8 thread. Base diameter is 40 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Fodmateriale
Glass fiber reinforced polyamide
Tread size
M8
Rubber pad
Purchased separately
Material type
Stainless steel
Skohøjde
13
Skruenøgle
6
Type
Tiltable threaded spindle
Diameter in mm
40
Gevindlængde i mm
45
Height in mm
68
Hardness in °
0
Maksimum belastning i kg
1000
Long description
Levelling foot in stainless steel with tiltable threaded spindle and M8 thread. Base diameter is 40 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
