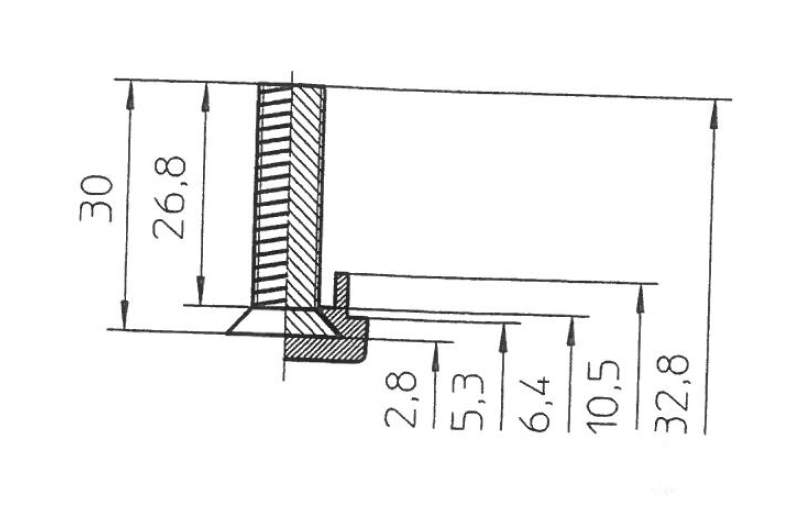

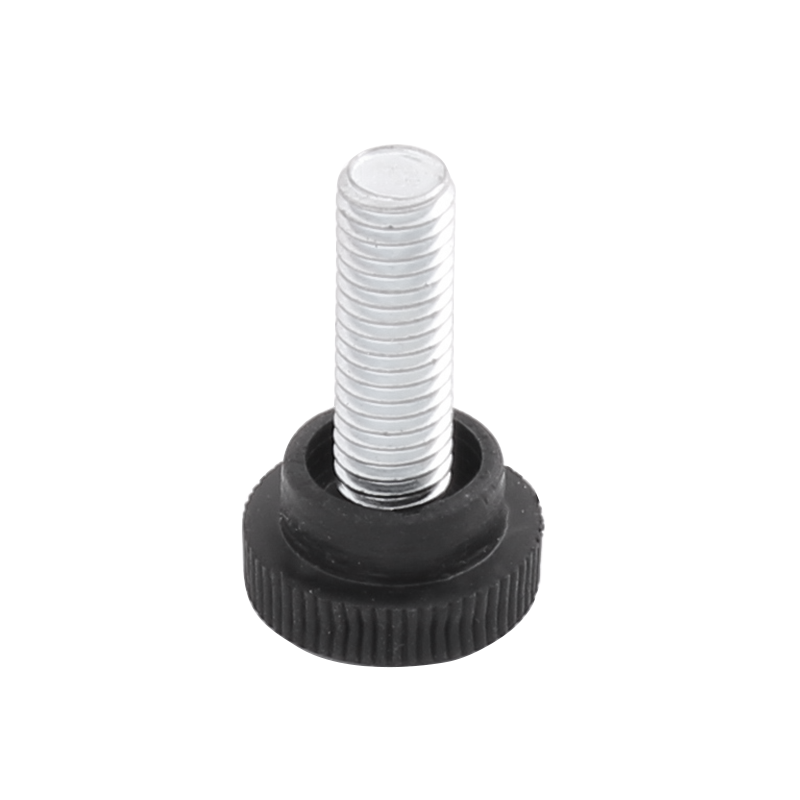

Levelling foot, steel, fixed threaded spindle, M8, base diameter = 20 mm
MT105503
Levelling foot in steel with fixed threaded spindle and M8 thread. Base diameter is 20 mm. The levelling foot can not be mounted to floor. Shore A 80-90. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Base material
TPE
Tread size
M8
Rubber pad
No
Shore standard
Shore A
Material type
Steel
Surface finish
Electro zinc plated
Foot height
6,4
Type
Fixed threaded spindle
Diameter in mm
20
Thread length in mm
22
Height in mm
32.8
Hardness in °
80
Maximum load in kg
0
Long description
Levelling foot in steel with fixed threaded spindle and M8 thread. Base diameter is 20 mm. The levelling foot can not be mounted to floor. Shore A 80-90. We can deliver a wide range of products on request. Please contact us for more information.
