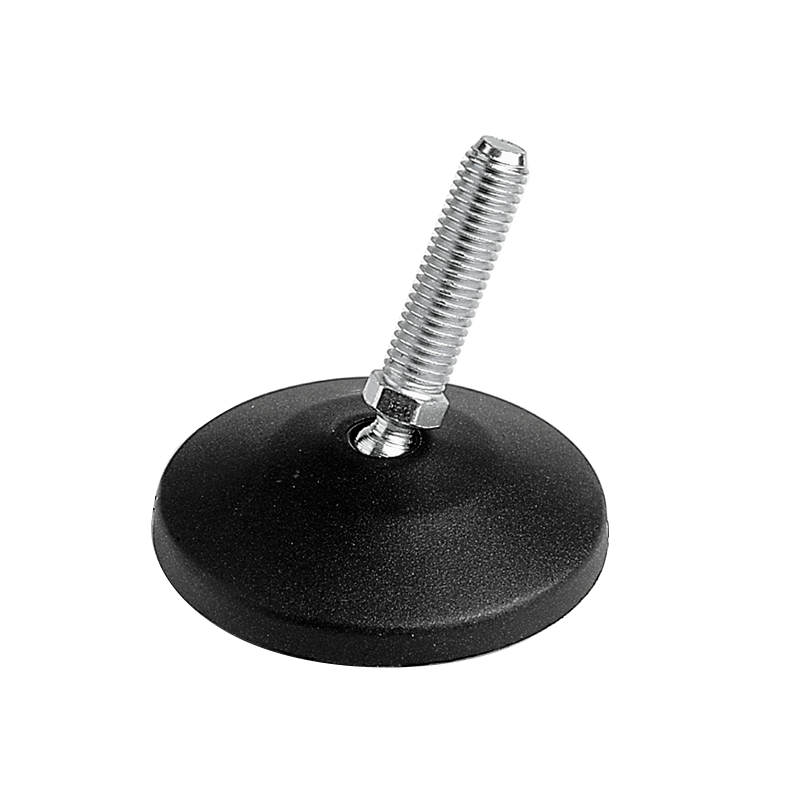

Levelling foot, steel, tiltable threaded spindle, M10, base diameter = 40 mm
MT104210
Levelling foot in steel with tiltable threaded spindle and M10 thread. Base diameter is 40 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Base material
Glass fiber reinforced polyamide
Tread size
M10
Rubber pad
Purchased separately
Material type
Steel
Surface finish
Electro zinc plated
Foot height
13
Type
Tiltable threaded spindle
Diameter in mm
40
Thread length in mm
45
Height in mm
67
Hardness in °
0
Maximum load in kg
1000
Long description
Levelling foot in steel with tiltable threaded spindle and M10 thread. Base diameter is 40 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
