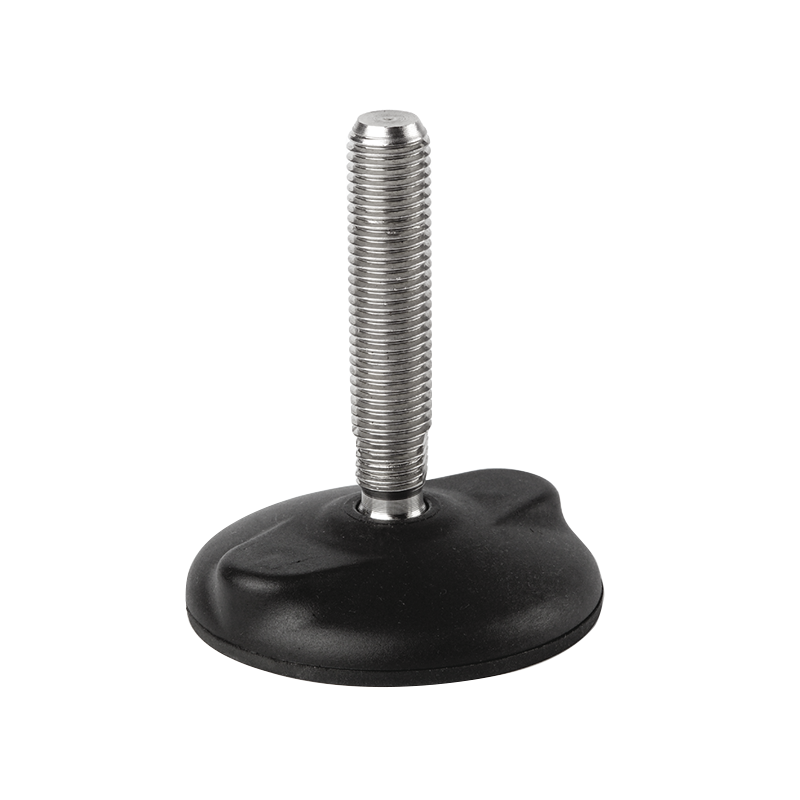

Levelling foot, steel, tiltable threaded spindle, M16, base diameter = 124 mm
MT106135
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter is 124 mm. The levelling foot can be mounted to the floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
Yes
Fodmateriale
Glass fiber reinforced polyamide
Tread size
M16
Rubber pad
Purchased separately
Material type
Steel
Surface finish
Electro zinc plated
Skohøjde
24
Skruenøgle
13
Type
Tiltable threaded spindle
Diameter in mm
124
Gevindlængde i mm
165
Height in mm
209
Hardness in °
0
Maksimum belastning i kg
2500
Long description
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter is 124 mm. The levelling foot can be mounted to the floor. We can deliver a wide range of products on request. Please contact us for more information.
