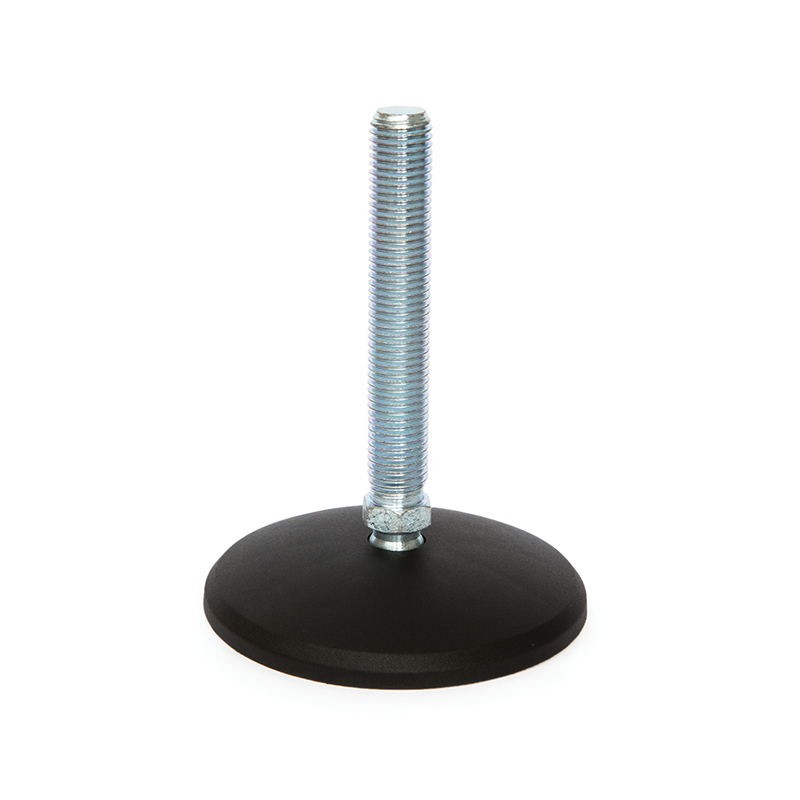

Levelling foot, steel, tiltable threaded spindle, M16, base diameter = 80 mm
MT104541
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter is 80 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Base material
Glass fiber reinforced polyamide
Tread size
M16
Rubber pad
Yes
Material type
Steel
Surface finish
Electro zinc plated
Foot height
18
Wrench
15
Type
Tiltable threaded spindle
Diameter in mm
80
Thread length in mm
100
Height in mm
131
Hardness in °
0
Maximum load in kg
900
Nettovægt
0.236
Varekode
6603901000
Lande-/områdekode for oprindelse
CN
Long description
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter is 80 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
