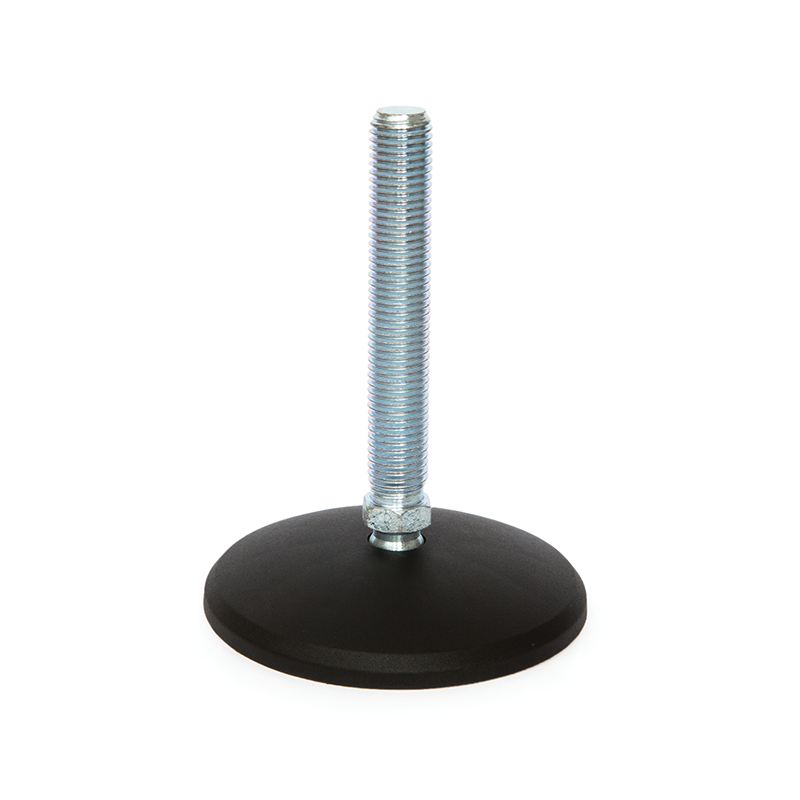

Levelling foot, steel, tiltable threaded spindle, M16, base diameter = 80 mm
MT108732
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter is 80 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Fodmateriale
Glass fiber reinforced polyamide
Tread size
M16
Rubber pad
Yes
Material type
Steel
Surface finish
Electro zinc plated
Skohøjde
18
Skruenøgle
17
Type
Tiltable threaded spindle
Diameter in mm
80
Gevindlængde i mm
150
Height in mm
181
Hardness in °
0
Maksimum belastning i kg
900
Long description
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter is 80 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
