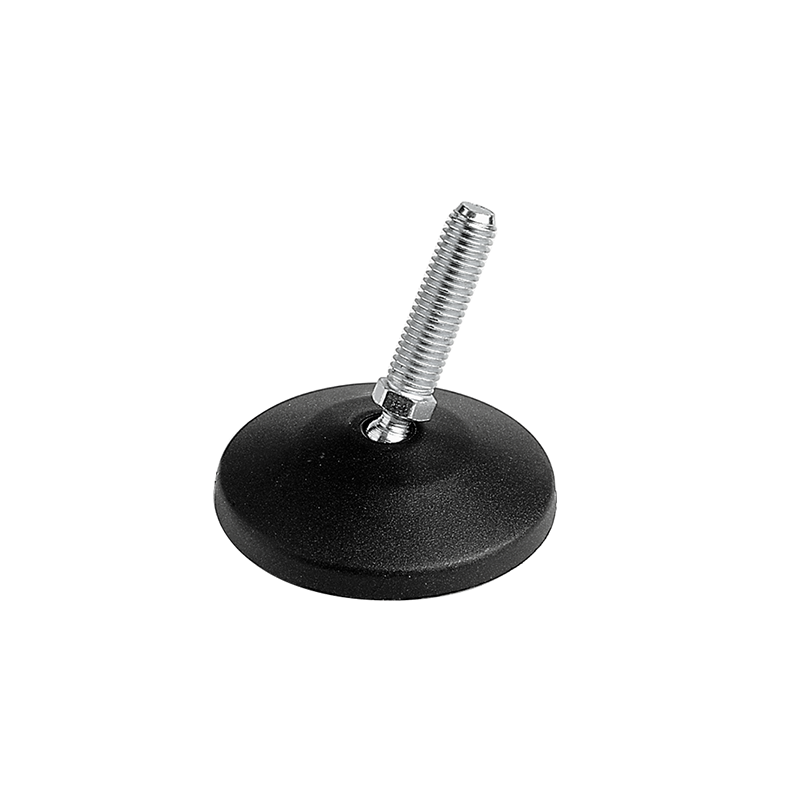

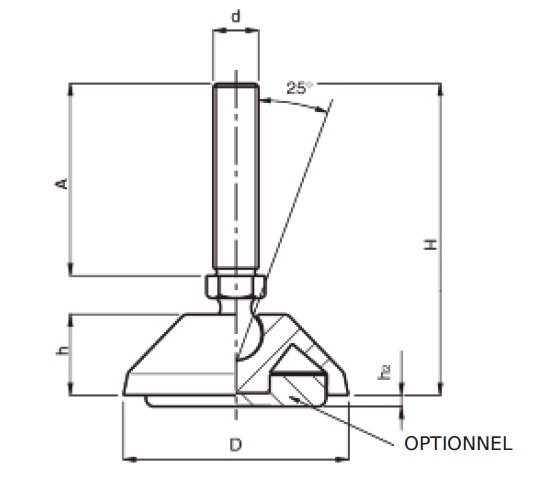

Levelling foot, steel, tiltable threaded spindle, M16x120, base diameter = 80 mm
MT104220
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter = 80 mm. The levelling foot can not be mounted to floor. Non-slip rubber pad: item no. 118900907. We can deliver a wide range of products on request. Please contact us fo
Colour
Black
Fixing to floor
No
Base material
Glass fiber reinforced polyamide
Tread size
M16
Rubber pad
Purchased separately
Material type
Steel
Surface finish
Electro zinc plated
Foot height
19
Wrench
0
Type
Tiltable threaded spindle
Diameter in mm
80
Thread length in mm
120
Height in mm
148
Hardness in °
0
Maximum load in kg
1000
Long description
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter = 80 mm. The levelling foot can not be mounted to floor. Non-slip rubber pad: item no. 118900907. We can deliver a wide range of products on request. Please contact us fo
