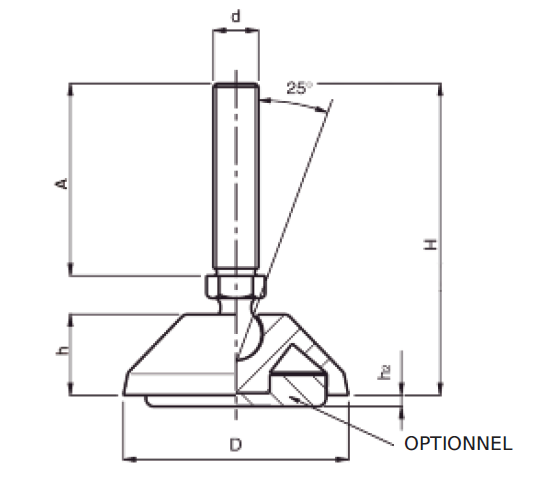

Levelling foot, steel, tiltable threaded spindle, M16x152, base diameter = 80 mm

MT104222
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter = 80 mm. The levelling foot can not be mounted to floor. Non-slip rubber pad: item no. 118900907. We can deliver a wide range of products on request. Please contact us fo
Colour
Black
Fixing to floor
No
Fodmateriale
Glass fiber reinforced polyamide
Tread size
M16
Rubber pad
Purchased separately
Material type
Steel
Surface finish
Electro zinc plated
Skohøjde
19
Skruenøgle
0
Type
Tiltable threaded spindle
Diameter in mm
80
Gevindlængde i mm
152
Height in mm
180
Hardness in °
0
Maksimum belastning i kg
1000
Long description
Levelling foot in steel with tiltable threaded spindle and M16 thread. Base diameter = 80 mm. The levelling foot can not be mounted to floor. Non-slip rubber pad: item no. 118900907. We can deliver a wide range of products on request. Please contact us fo
