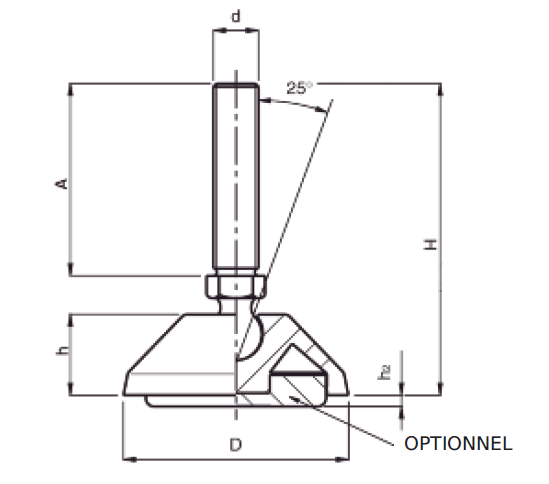

Levelling foot, steel, tiltable threaded spindle, M8, base diameter = 80 mm
MT104221
Levelling foot in steel with tiltable threaded spindle and M8 thread. Base diameter is 80 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Fixing to floor
No
Fodmateriale
Glass fiber reinforced polyamide
Tread size
M8
Rubber pad
Purchased separately
Material type
Steel
Surface finish
Electro zinc plated
Skohøjde
19
Type
Tiltable threaded spindle
Diameter in mm
80
Gevindlængde i mm
45
Height in mm
73
Hardness in °
0
Maksimum belastning i kg
1000
Nettovægt
0
Varekode
6603901000
Lande-/områdekode for oprindelse
ES
Long description
Levelling foot in steel with tiltable threaded spindle and M8 thread. Base diameter is 80 mm. The levelling foot can not be mounted to floor. We can deliver a wide range of products on request. Please contact us for more information.
