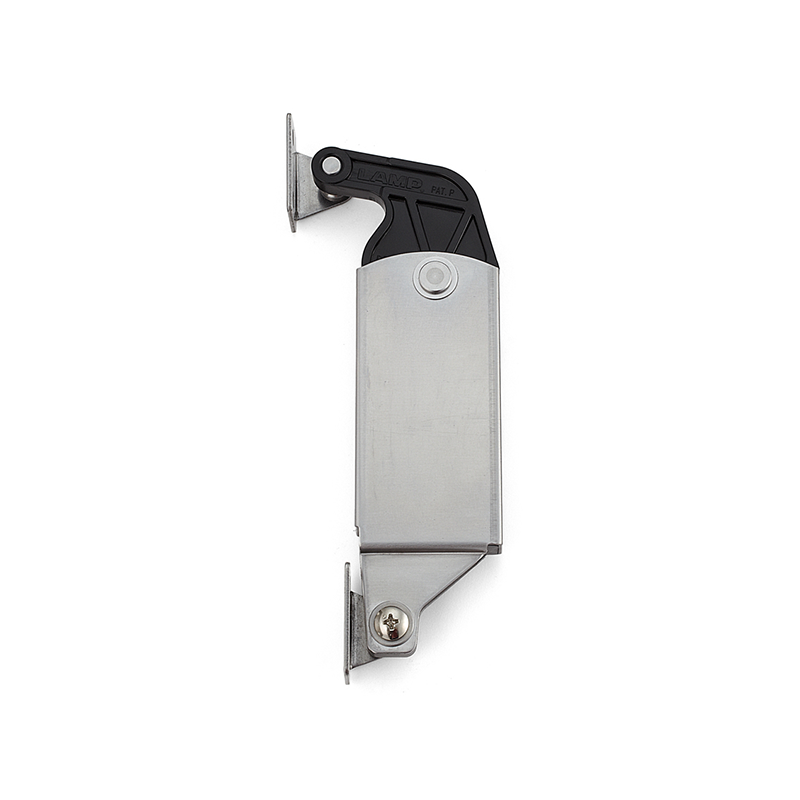

Lid stay, stainless steel, 1 position(s), spring-loaded, L=128,8mm, Ø4,7mm holes
MT110849
Lid stay manufactured in stainless steel with a hole diameter of 4,7 mm and a length of 128,8mm. The product can be adjusted in 1 position(s) and is spring-loaded. Material of the arm is POM plastic and torque interval is: 8,8 - 11,8N.m. We offer many stays and stops, so if you cannot find the right product, then please contact
Other approvals
RoHS 2
Spring-loaded
Yes
Hole type
Simple
Material
SUS 430
Material type
Stainless steel
Stop positions
1
Type
Fold
Load capacity in kg
0
Torque in N.m
11.8
Hole diameter in mm
4.7
Length in mm
128.8
Extension length in mm
0
Long description
Lid stay manufactured in stainless steel with a hole diameter of 4,7 mm and a length of 128,8mm. The product can be adjusted in 1 position(s) and is spring-loaded. Material of the arm is POM plastic and torque interval is: 8,8 - 11,8N.m. We offer many stays and stops, so if you cannot find the right product, then please contact
