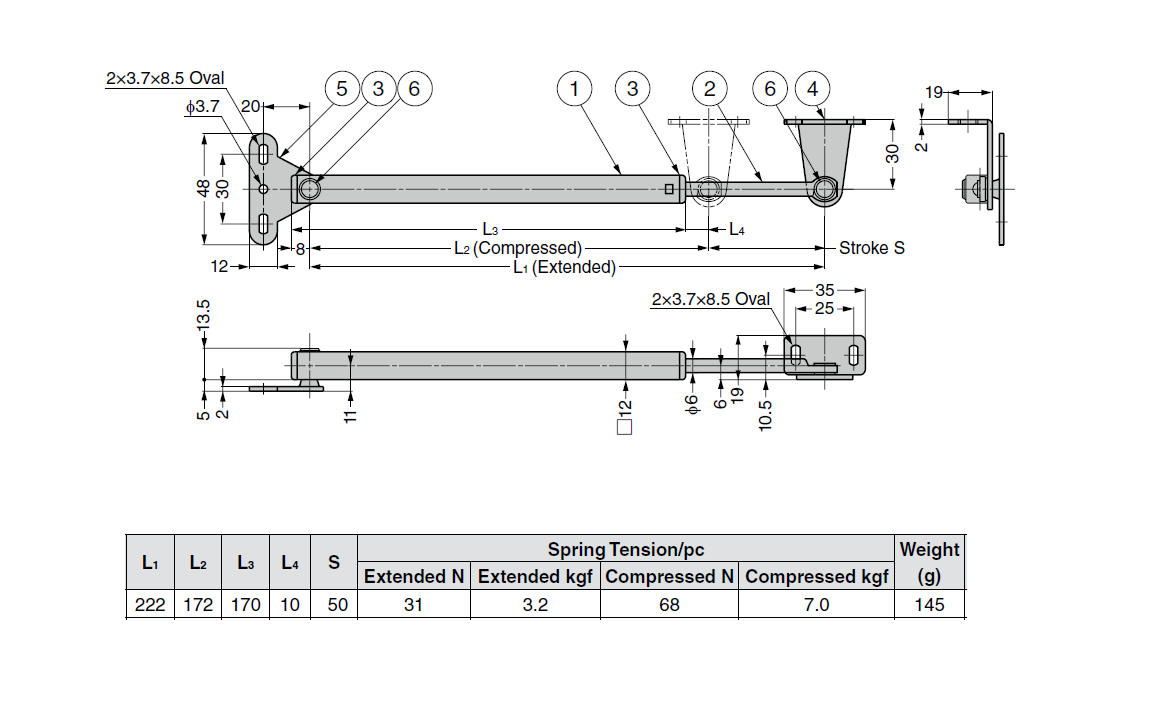

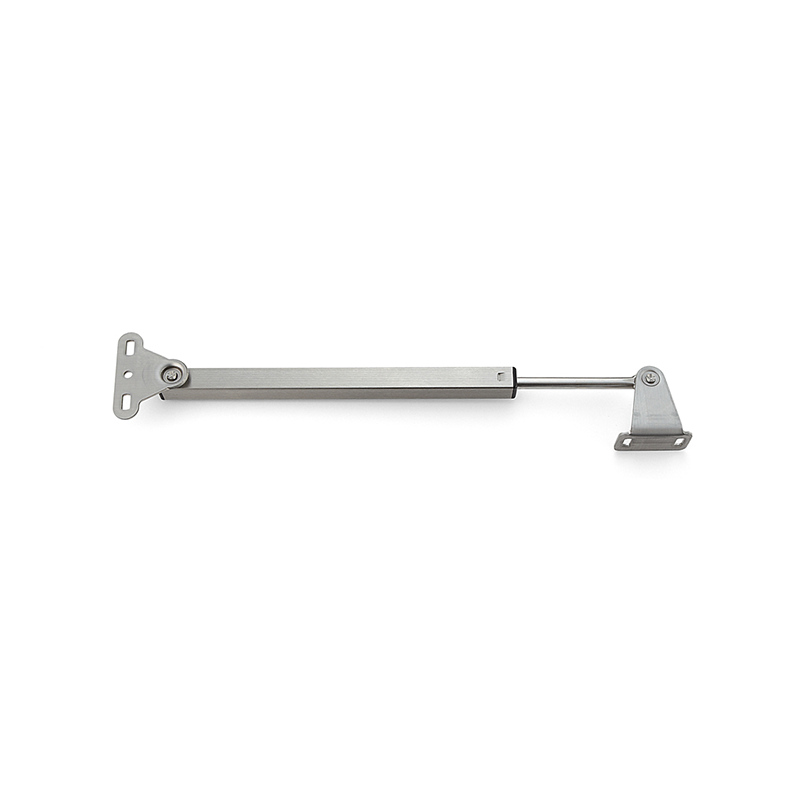

Lid stay, stainless steel, 1 position(s), spring-loaded, L=172mm, Ø3,7mm holes
MT110282
Lid stay manufactured in stainless steel with a hole diameter of 3,7 mm and a length of 172mm. The product can be adjusted in 1 position(s) and is spring-loaded. We offer many stays and stops, so if you cannot find the right product, then please co
Other approvals
RoHS
Fjedervirkning
Yes
Hole type
Oval
Material
SUS 304
Material type
Stainless steel
Surface finish
Satin
Stop positioner
1
Type
Telescope
Bæreevne i kg
3.2
Drejningsmoment i N.m
0
Hole diameter in mm
3.7
Length i mm
172
Udtrækslængde i mm
222
Long description
Lid stay manufactured in stainless steel with a hole diameter of 3,7 mm and a length of 172mm. The product can be adjusted in 1 position(s) and is spring-loaded. We offer many stays and stops, so if you cannot find the right product, then please co
