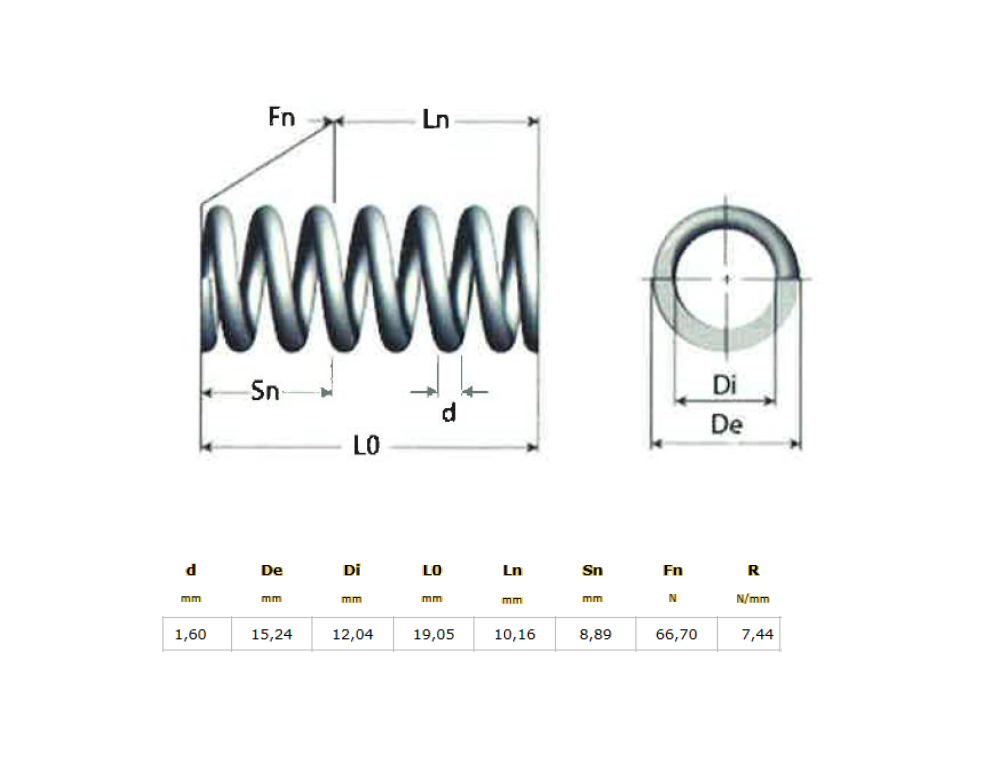

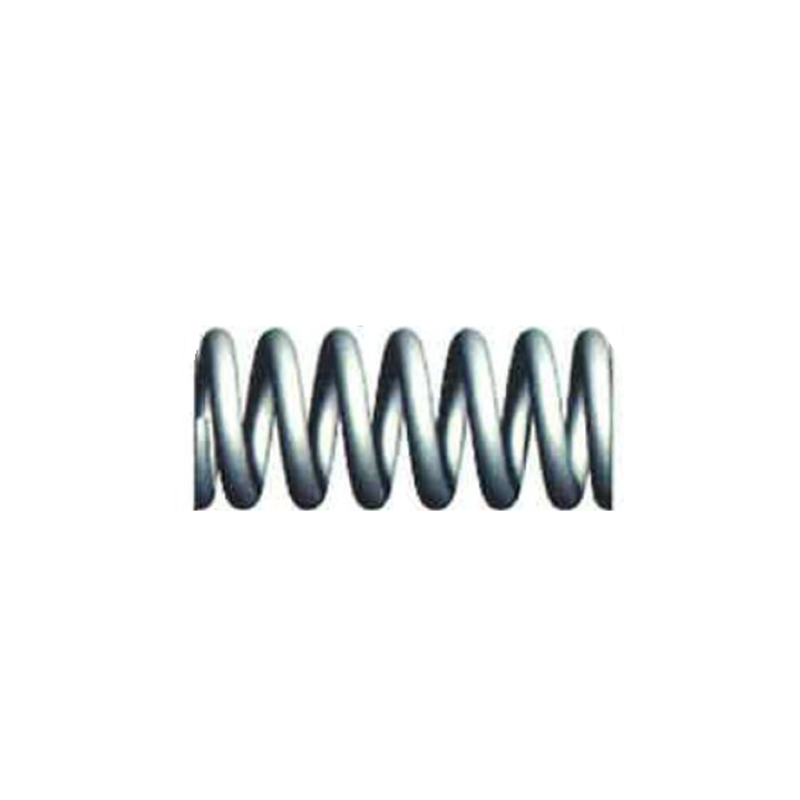

Compression spring, stainless steel, d=1,6mm, Dm=13,64mm, Lo=19,05mm
MT109340
Compression spring manufactured in stainless steel. The wire diameter is 1,6mm, the diameter is 13,64mm, and the free length is 19,05mm. The spring assortment is limited to the available products on our webshop.
Material type
Stainless steel
Type
Compression spring
Diameter in mm
13.64
Diameter outer
15.24
Length in mm
19.05
Wire diameter
1.6
Spring rate
7,44
Fn
66,7
Length, min.
10,16
Long description
Compression spring manufactured in stainless steel. The wire diameter is 1,6mm, the diameter is 13,64mm, and the free length is 19,05mm. The spring assortment is limited to the available products on our webshop.
