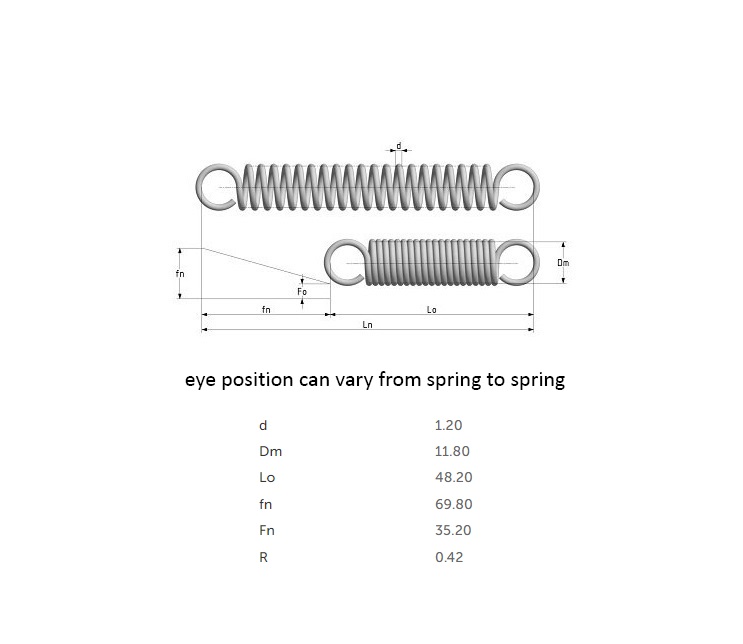

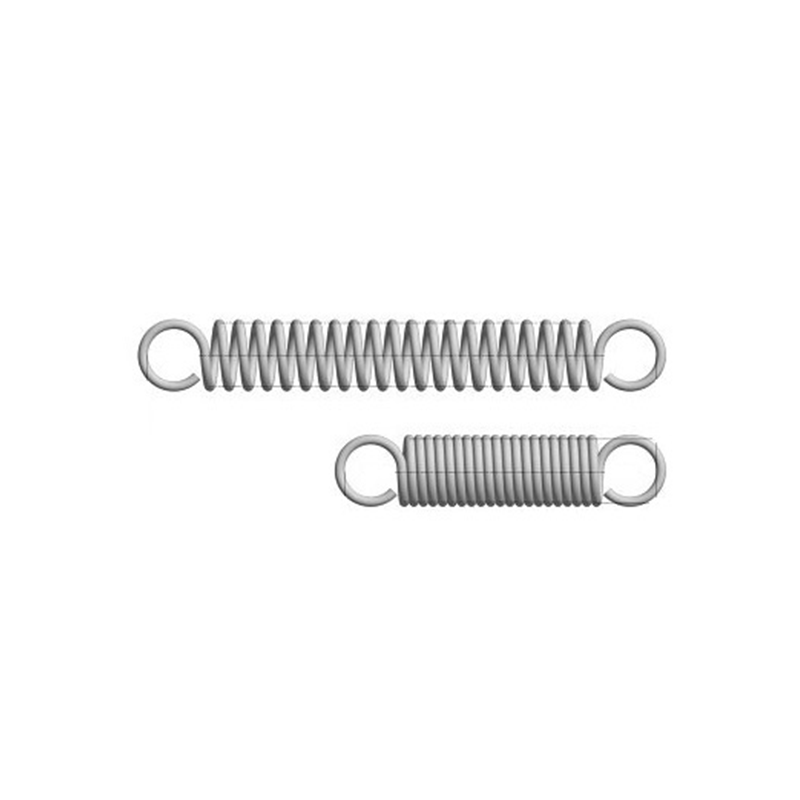

Extension spring, stainless steel, d=1,2mm, Dm=11,8mm, Lo=48,2mm
MT106121
Extension spring manufactured in stainless steel. The wire diameter is 1,2mm, the diameter is 11,8mm, and the free length is 48,2mm. The spring assortment is limited to the available products on our webshop.
Material type
Stainless steel
Type
Extension spring
Diameter in mm
11.8
Diameter outer
13
Wire diameter
1.2
Spring rate
0,42
Fo
35,2
Fn
69,8
Length, min.
48,2
Long description
Extension spring manufactured in stainless steel. The wire diameter is 1,2mm, the diameter is 11,8mm, and the free length is 48,2mm. The spring assortment is limited to the available products on our webshop.
