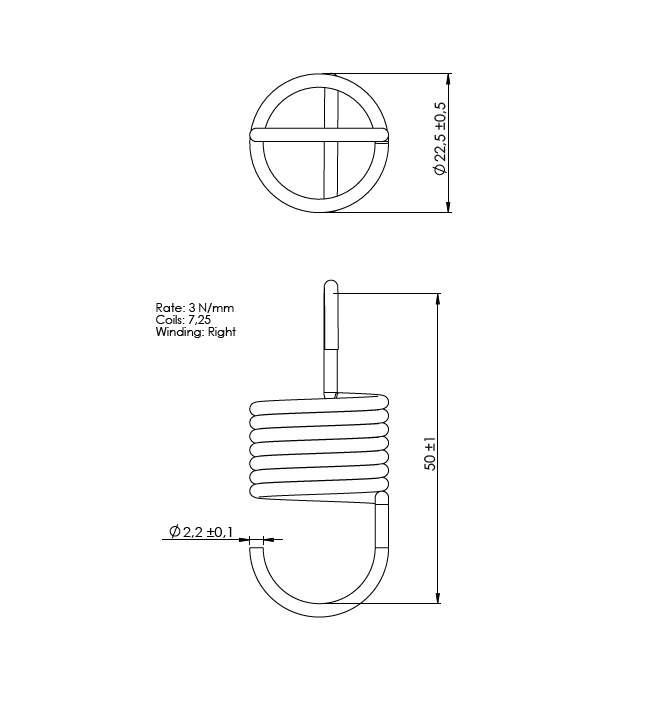

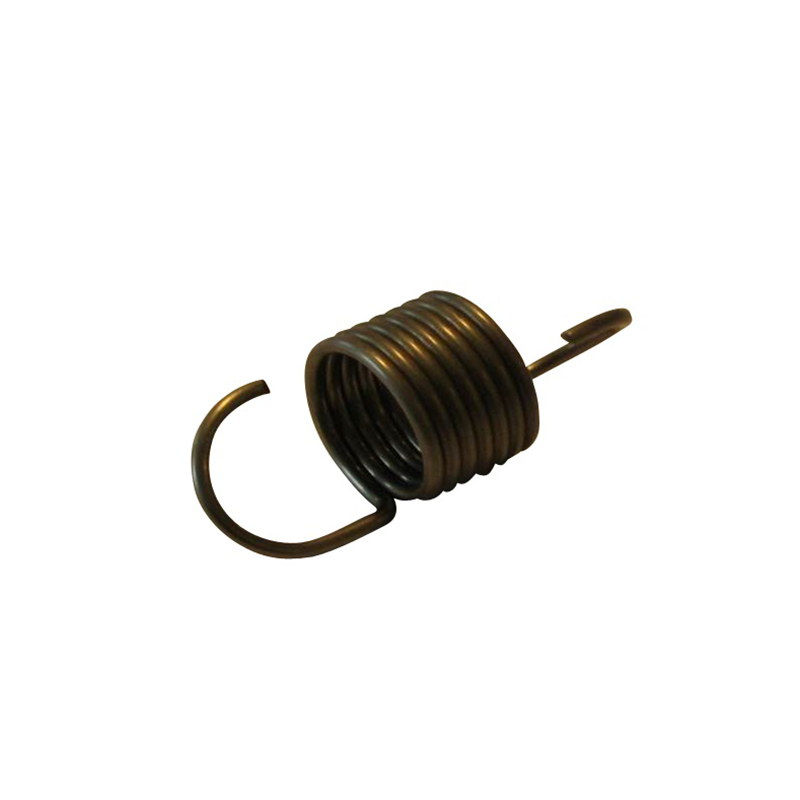

Extension spring, stainless steel, d=2,2mm, Dm=20,3mm, Lo=50mm
MT109100
Extension spring manufactured in stainless steel. The wire diameter is 2,2mm, the diameter is 20,3mm, and the free length is 50mm. The spring assortment is limited to the available products on our webshop.
Material type
Stainless steel
Type
Extension spring
Diameter in mm
20.3
Diameter outer
22.5
Wire diameter
2.2
Spring rate
3
Length, min.
50
Long description
Extension spring manufactured in stainless steel. The wire diameter is 2,2mm, the diameter is 20,3mm, and the free length is 50mm. The spring assortment is limited to the available products on our webshop.
