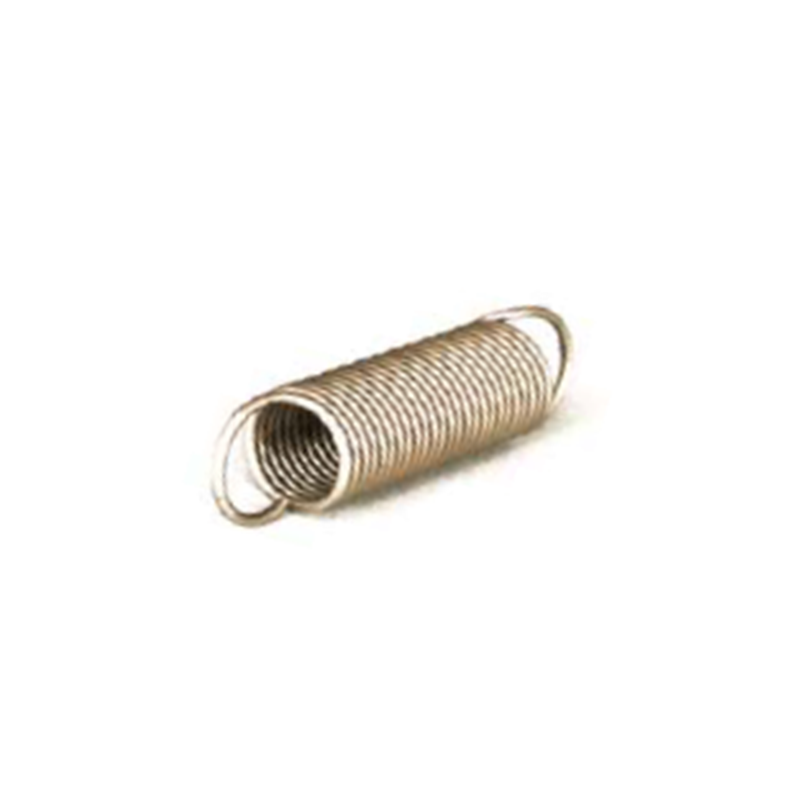

Extension spring, stainless steel, d=2,92mm, Dm=22,48mm, Lo=228,6mm
MT109688
Extension spring manufactured in stainless steel. The wire diameter is 2,92mm, the diameter is 22,48mm, and the free length is 228,6mm. The spring assortment is limited to the available products on our webshop.
Material type
Stainless steel
Type
Extension spring
Diameter in mm
22.48
Diameter outer
25.4
Length in mm
444.75
Wire diameter
2.92
Spring rate
0,85
Fo
18,17
Fn
201,2
Length, min.
228,6
Long description
Extension spring manufactured in stainless steel. The wire diameter is 2,92mm, the diameter is 22,48mm, and the free length is 228,6mm. The spring assortment is limited to the available products on our webshop.
