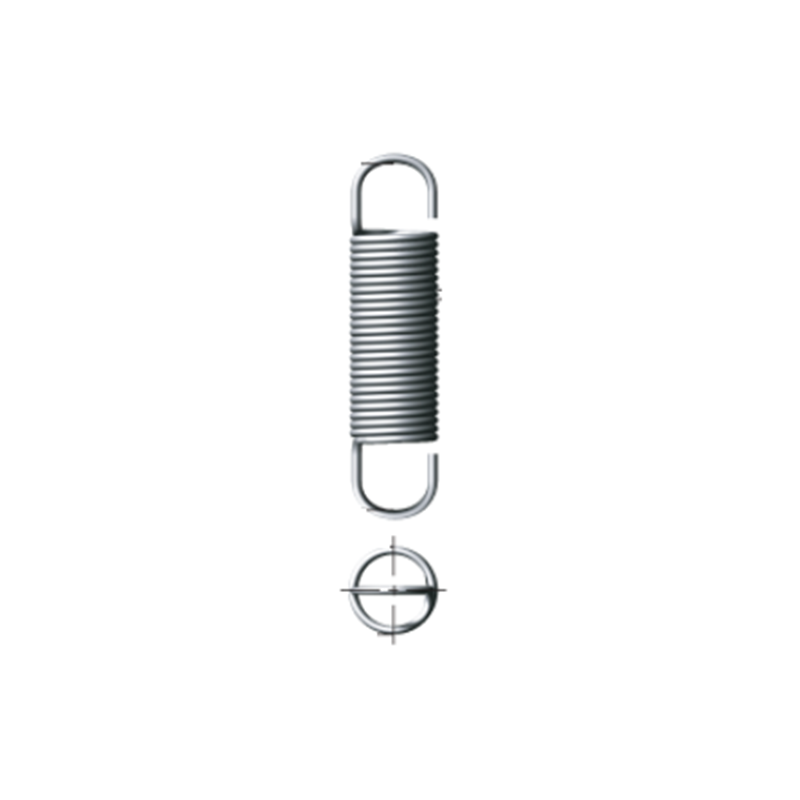

Extension spring, stainless steel, d=2,92mm, Dm=28,83mm, Lo=378,21mm
MT111734
Extension spring manufactured in stainless steel. The wire diameter is 2,92mm, the diameter is 28,83mm, and the free length is 378,21mm. The spring assortment is limited to the available products on our webshop.

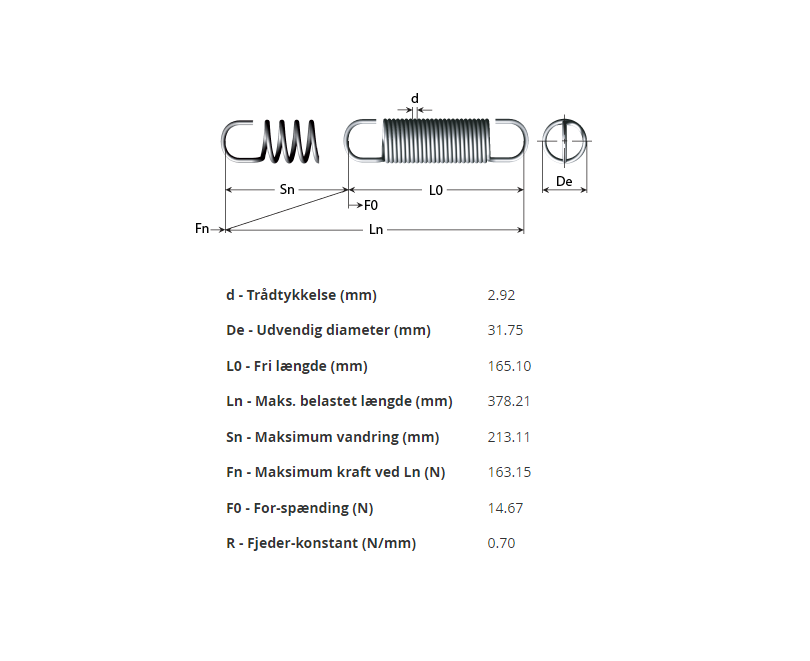

Material type
Stainless steel
Type
Extension spring
Diameter in mm
28.83
Diameter outer
31.75
Length in mm
165.1
Wire diameter
2.92
Spring rate
0,7
Fo
14,67
Fn
163,15
Length, min.
378,21
Long description
Extension spring manufactured in stainless steel. The wire diameter is 2,92mm, the diameter is 28,83mm, and the free length is 378,21mm. The spring assortment is limited to the available products on our webshop.
