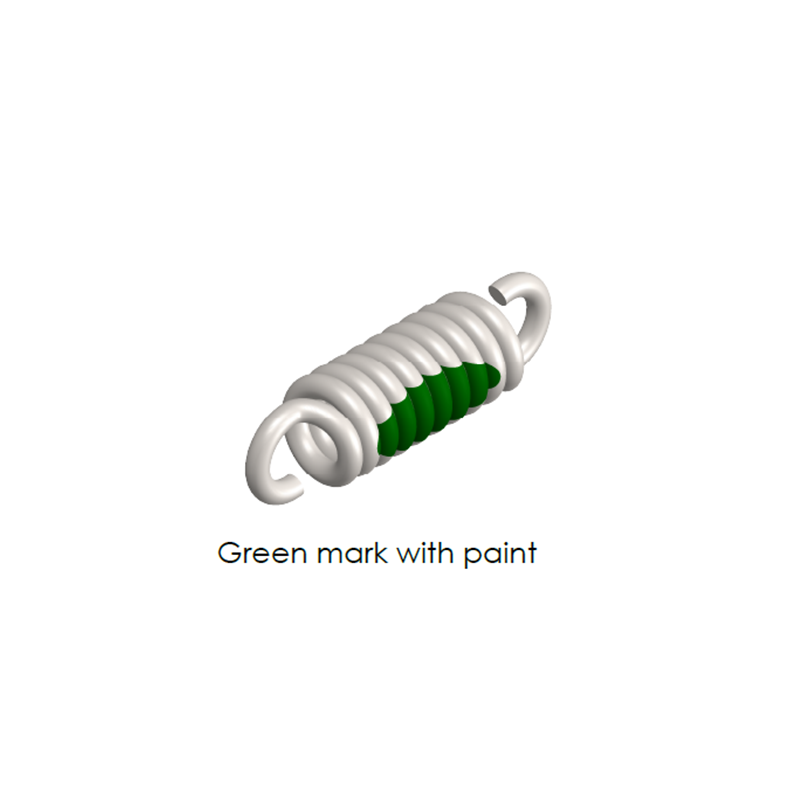

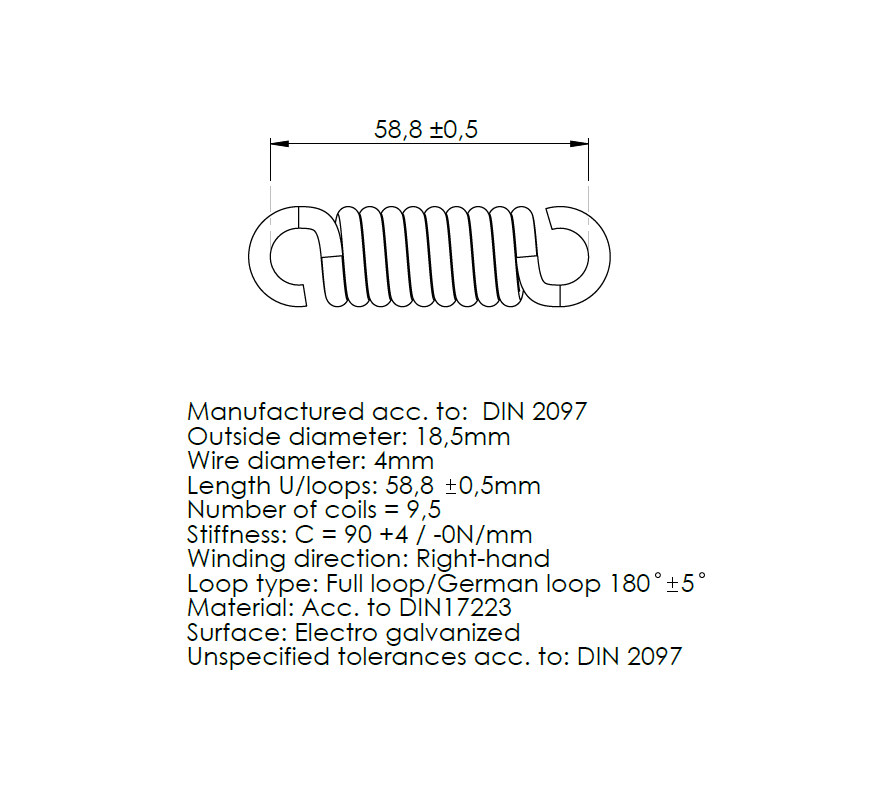

Extension spring, steel, d=4mm, Dm=14,5mm, Lo=58,8mm
MT109027
Extension spring manufactured in steel. The wire diameter is 4mm, the diameter is 14,5mm, and the free length is 58,8mm. The spring assortment is limited to the available products on our webshop.
Material type
Steel
Surface finish
Electro zinc plated
Type
Extension spring
Diameter in mm
14.5
Diameter outer
18.5
Wire diameter
4
Spring rate
90
Length, min.
58,8
Long description
Extension spring manufactured in steel. The wire diameter is 4mm, the diameter is 14,5mm, and the free length is 58,8mm. The spring assortment is limited to the available products on our webshop.
