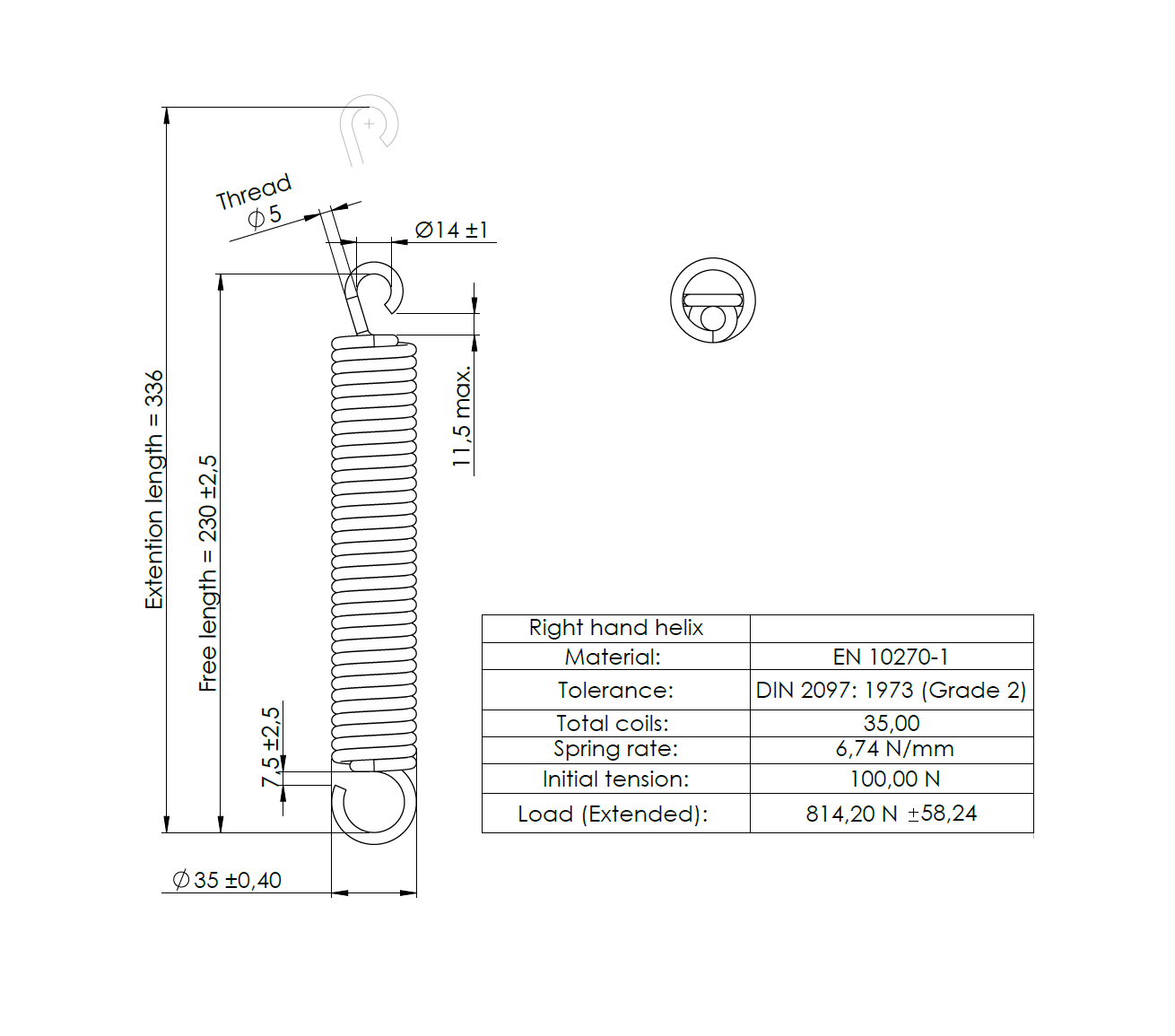

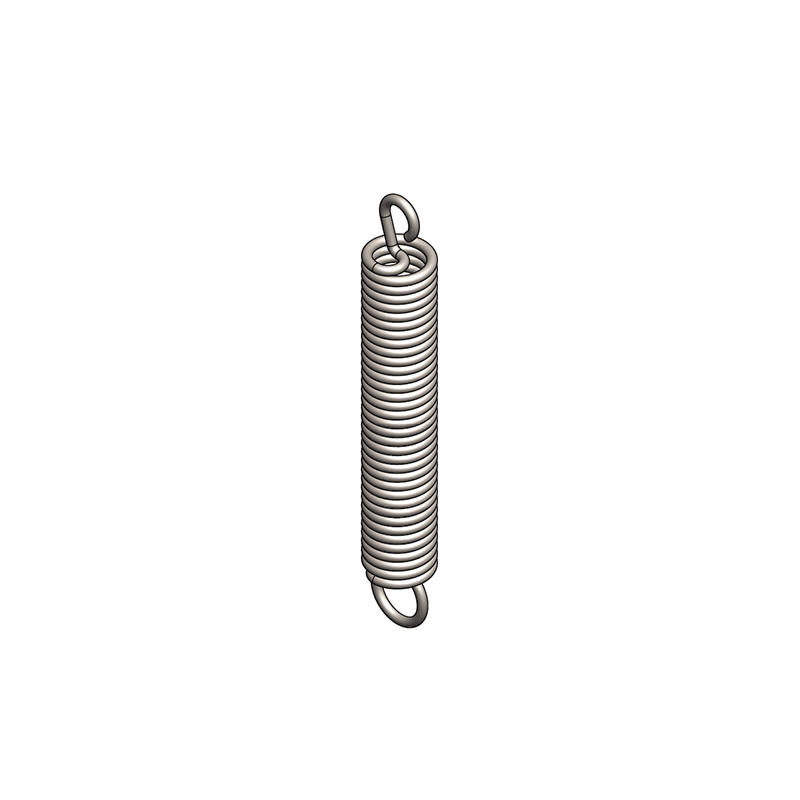

Extension spring, steel, d=5mm, Dm=30mm, Lo=230mm
MT108895
Extension spring manufactured in steel. The wire diameter is 5mm, the diameter is 30mm, and the free length is 230mm. The spring assortment is limited to the available products on our webshop.
Material type
Steel
Surface finish
Electro zinc plated
Type
Extension spring
Diameter in mm
30
Diameter outer
35
Length in mm
336
Wire diameter
5
Spring rate
6,47
Fo
100
Fn
814,2
Length, min.
230
Long description
Extension spring manufactured in steel. The wire diameter is 5mm, the diameter is 30mm, and the free length is 230mm. The spring assortment is limited to the available products on our webshop.
