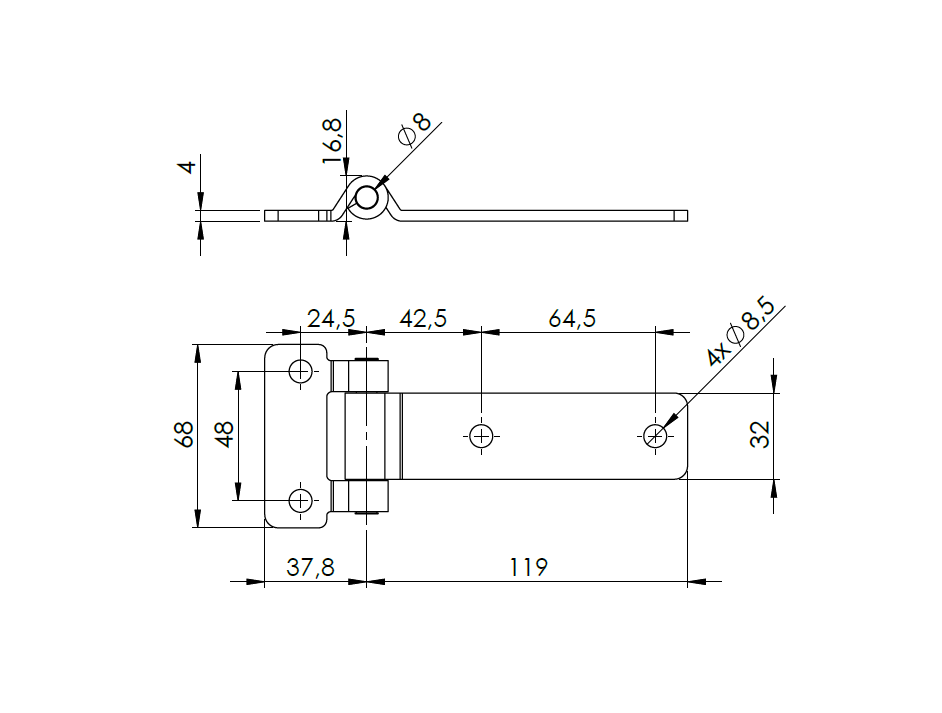

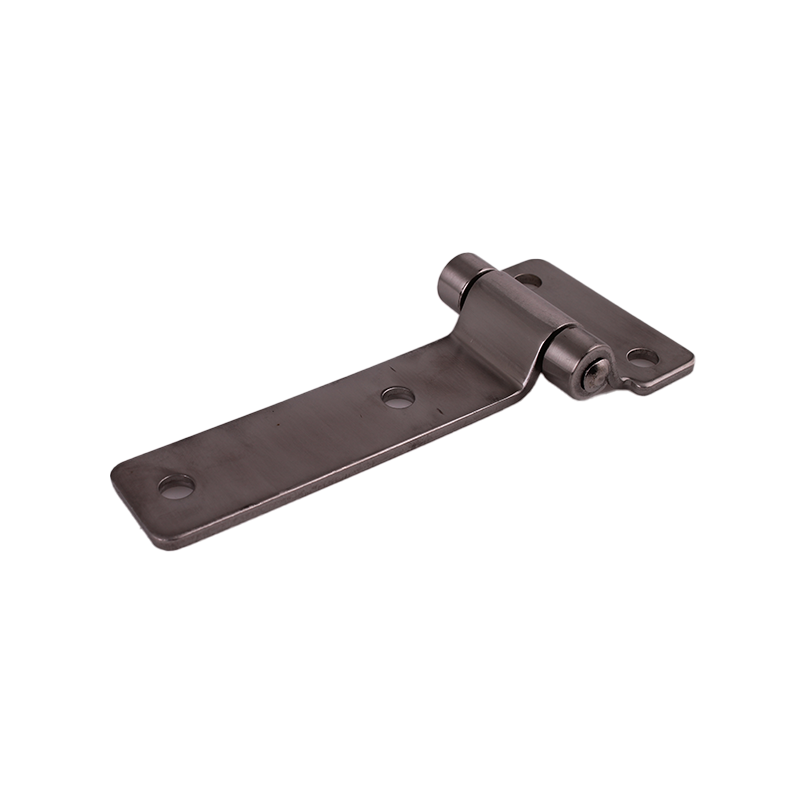

Butt hinge w/holes, acid proof stainless steel, L=156,8, B=68, T=4
MT109058
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter on 8 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Simple
Material
AISI 316
Material type
Acid proof Stainless Steel
Type
With holes
Pin diameter in mm
8
Hole diameter in mm
8.5
Height in mm
16.8
Length in mm
156.8
Thickness in mm
4
Long description
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter on 8 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
