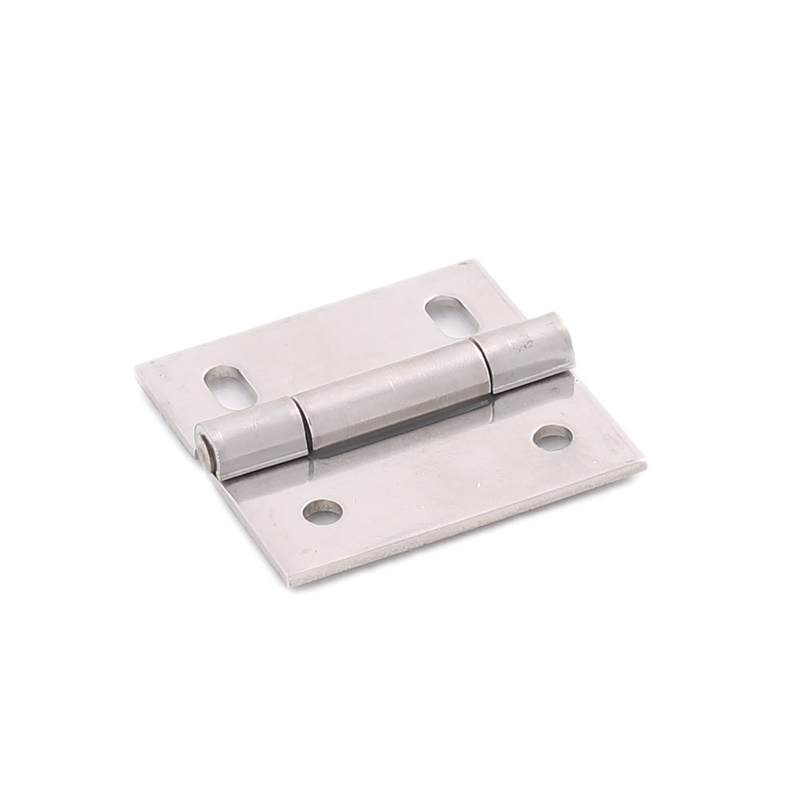

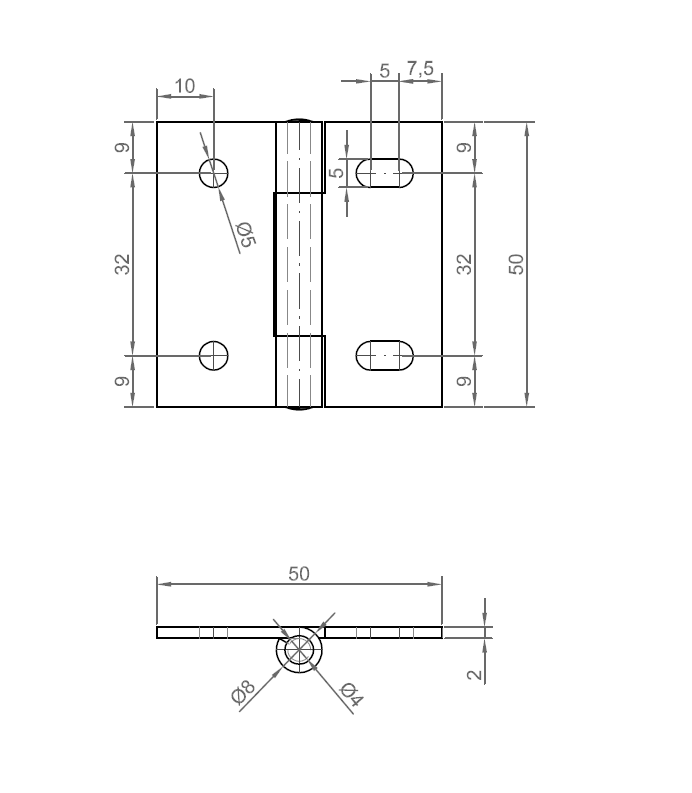

Butt hinge w/holes, acid proof stainless steel, L=50, B=50, T=2
MT104769
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter of 4 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Simple & Oval
Material
AISI 316
Material type
Acid proof Stainless Steel
Type
With holes
Pin diameter in mm
4
Hole diameter in mm
5
Height in mm
8
Length in mm
50
Thickness in mm
2
Long description
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter of 4 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
