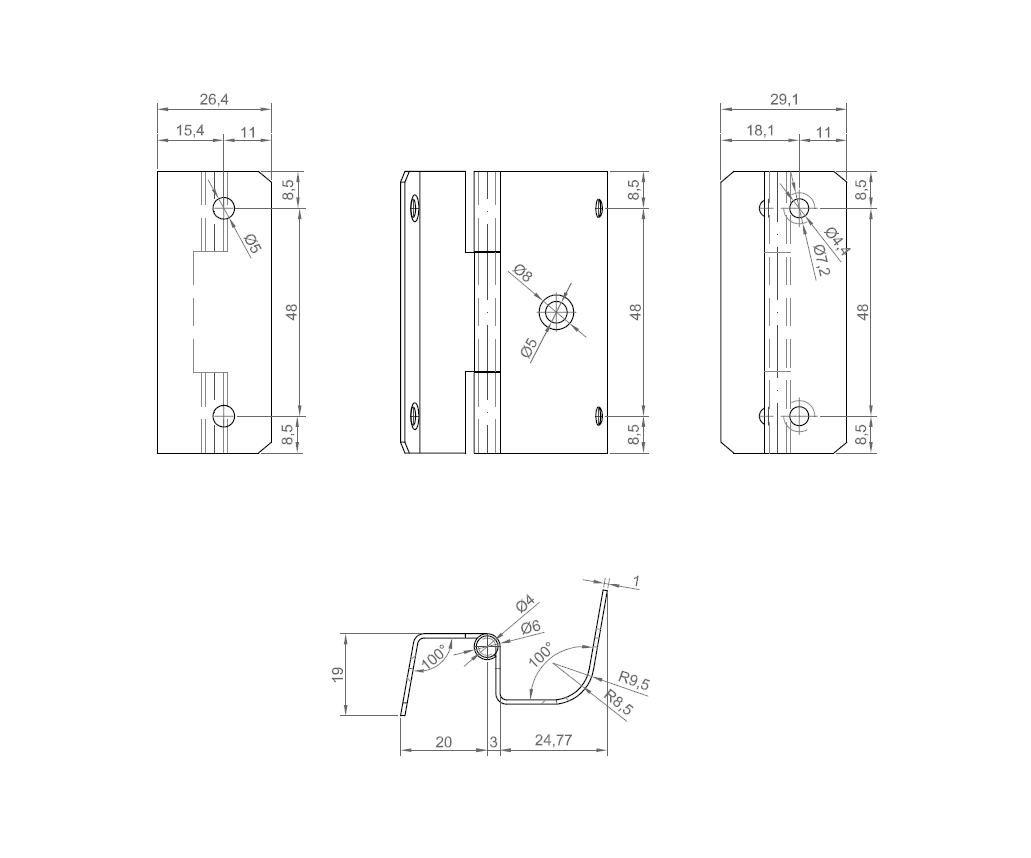

Butt hinge w/holes, acid proof stainless steel, L=65, B=48, T=1
MT110035
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter on 4 mm.
Two different hole diameters: Ø4,4mm.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Two different hole diameters: Ø4,4mm.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Simple & countersunk
Material
AISI 316
Material type
Acid proof Stainless Steel
Type
With holes
Pin diameter in mm
4.5
Hole diameter in mm
5
Height in mm
0
Length in mm
65
Thickness in mm
1
Long description
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter on 4 mm.
Two different hole diameters: Ø4,4mm.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Two different hole diameters: Ø4,4mm.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
